Description

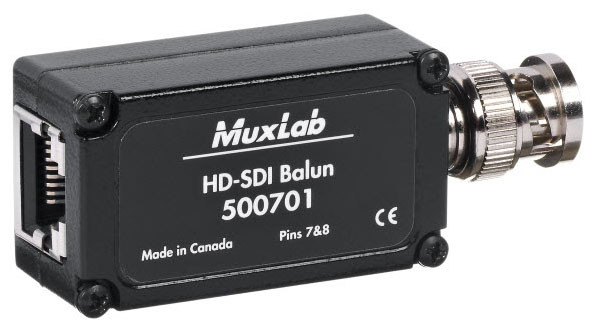

The HD-SDI Balun allows one HD-SDI signal to be transmitted up to 150 ft (45m) via Cat5e cable at HD resolution in a point-to-point configuration. The HD-SDI Balun supports transmission of up to 1.5 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) within television facilities and between professional video equipment.
Features:
- Supports SD and HD (720p,1080i) resolutions
- Up to 150 ft (45m) via Cat5e cable @ HD
- Up to 400 ft (120m) via Cat5e cable @ SD
- Supports Cat5e/6 cable
- Cast aluminum enclosure
Technical Specifications
Connector Type
- One BNC 75 ohm male
- One RJ45S for Cat 5e/6
Speed
- 270 Mbps
- and 1.485 & 2.97 Gbps
Ethernet Port
RJ45
Operating Temperature
68 to 122°F (20 to 50°C)
Operating Humidity
Up to 95% (non-condensing)
Material
Cast aluminum
Compliance
- FCC
- CE
- RoHS
Warranty
Lifetime Warranty
