Description

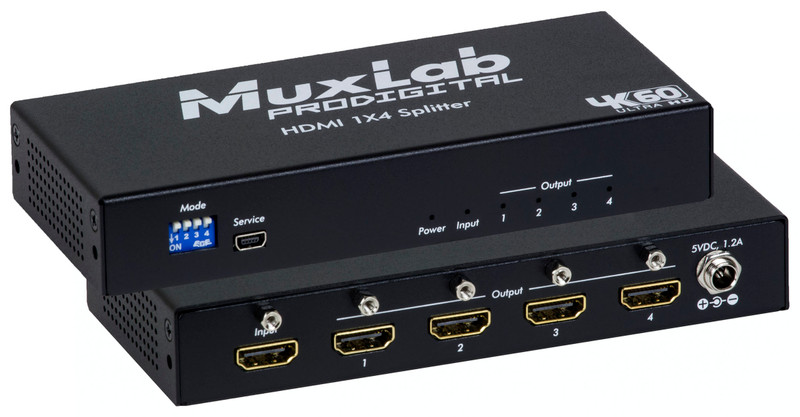

The HDMI 1x4 Splitter, 4K60 (500426) allows one (1) HDMI 2.0 source to be distributed to up to four (4) HDMI displays. The splitter supports up to 4K (3840 X 2160) video @ 60Hz, HDR, Deep Color and HD audio. The splitter is HDCP 1.4 & 2.2 compliant and features EDID management and LED diagnostics. Additionally, all connectors are on the rear panel for neater cabling.
Features:
- Distribute one HDMI 2.0 source to four displays
- Supports up to 4K @ 60Hz (4:4:4)
- HDCP 1.4 and 2.2 compliant
- Supports HDR and Deep Color
- Independent down-scaler from 4K to 1080p at each output
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
Technical Specifications
Bandwidth
18Gbps
Frequency
25 to 600 MHz
Connector Type
HDMI receptacle.
LED Type
- Power: Blue
- Input & Output Link: Green
Resolution
- 3840 x 2160
- 1920 x 1080
Voltage
110-240V/5VDC
Current
2A
Operating Temperature
0° to 40°C
Operating Humidity
up to 90% non-condensing
Compliance
- FCC
- CE
- RoHS
Warranty
2 Year Warranty
