Description

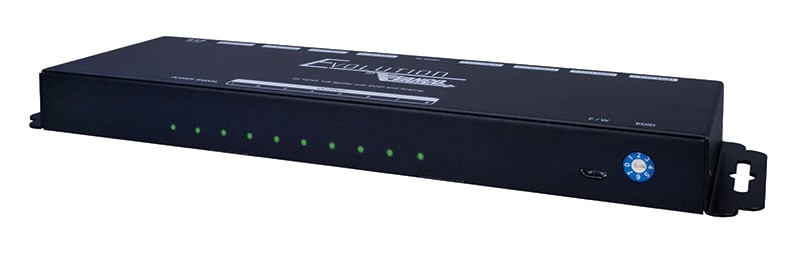

The Evolution by Vanco EVSP12SC, EVSP14SC and EVSP18SC HDMI splitters with 4K, 4:4:4, and HDR pass-through, splits one source signal to multiple displays. These splitters are also able to downscale to 1080p, allowing 4K resolution to be maintained on other outputs. Also features EDID management, with different modes to ensure compatibility with source and display combinations. Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio for advanced audio setups. Take any 4K source and split the signal to multiple displays, while being able to connect both 4K and 1080p displays simultaneously, to ensure the highest quality possible resolution. A great solution for applications with a mix of 4K and 1080p displays!
Features:
- Transmits audio and video from a single source to 8 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
- Supports 4K and 1080p resolutions simultaneously; downscales to 1080p for lower resolution displays while maintaining 4K on other outputs
- Supports up to 4K@60Hz with 8 bit color, and 4:4:4 color sampling
- Supports up to 4K@60Hz with 10 bit color, and 4:2:0 color sampling and HDR
- HDCP 2.2 and 1.4 compliant
- Wide frequency range: 25MHz~600MHz
Technical Specifications
Resolution
3840 x 2160
Voltage
5VDC
Frequency
25MHz-600MHz
Bandwidth
18Gbps
Color
Black
