Description

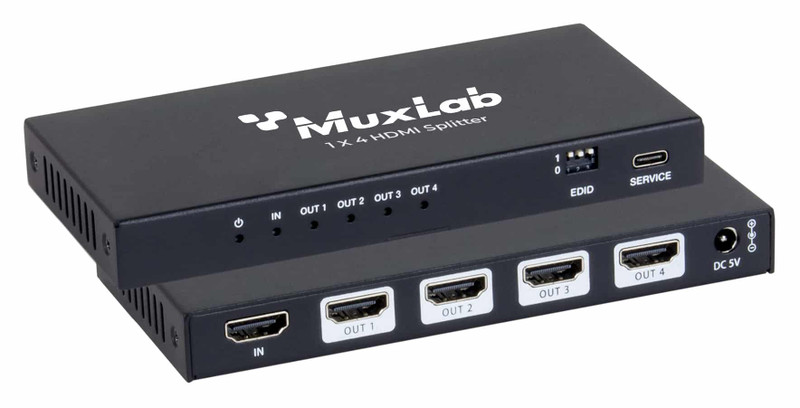

The HDMI 2.1 48Gbps 1x4 Splitter (model: 500511) is a versatile device with various applications, offering advanced features for splitting HDMI signals. The HDMI 2.1 48Gbps 1x4 Splitter's ability to handle high data rates, support 8K resolution, and provide features like EDID management and cable equalization makes it suitable for a wide range of applications in both residential and commercial settings.
Features:
- HDMI 2.1 and HDCP 2.3 compliant
- Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
- Supports video resolution up to 8K/60Hz 4:2:012bit, 4K/120Hz 4:4:4 12bit
- HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM
- Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
Technical Specifications
Bandwidth
48Gbps
Resolution
- Up to 8K/60Hz 4:2:0 12bit
- 4K/120Hz 4:4:4 12bit
Input Type
- 1 × HDMI IN [Type A
- 19-pin female]
Output Type
- 4 × HDMI OUT [Type A
- 19-pin female]
Material
Black Metal
Voltage
- Input: 100-240VAC 50/60Hz
- Output: 5VDC/2A
Consumption
5.5W
Operating Temperature
0°C ~ 40°C
Warranty
2 Year Warranty
