Description

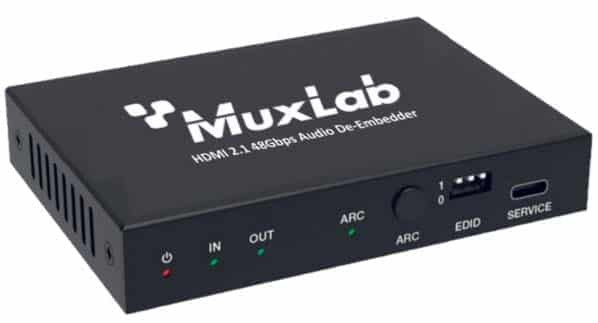

The HDMI 2.1 48Gbps Audio De-Embedder (model: 500514) can extract audio signals from an HDMI source or ARC-compatible TV and send them to an analog stereo audio output and an S/PDIF digital audio output. It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. In addition, the unit allows the HDMI source to be looped out and extended to a local display; it also includes several features to facilitate integration such as EDID management and cable equalization providing an easy solution for HDMI installations to send audio signals to a stereo audio or surround sound system.
Features:
- HDMI 2.1 and HDCP 2.3 compliant
- Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
- Supports video resolution up to 8K/60Hz 4:2:0 12bit, 4K/120Hz 4:4:4 12bit
- HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
- Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
- LPCM 7.1CH, Dolby True HD, Atmos and DTS-HD Master, DTS:X Audio pass-through
Technical Specifications
Bandwidth
48Gbps
Resolution
- Up to 8K/60Hz 4:2:0 12bit
- 4K/120Hz 4:4:4 12bit
Input Type
- 1 × Source IN [HDMI Type A
- 19-pin female]
- 1 × TV(ARC) OUT [HDMI Type A
- 19-pin female]
Output Type
- 1 × L/R [3.5mm Stereo mini-jack]
- 1 × OPTICAL [S/PDIF
- female]
Material
Metal
Voltage
- Input: 100-240VAC 50
- Output: 5VDC
Consumption
4W
Operating Temperature
0°C ~ 40°C /32°F ~ 104°F
Operating Humidity
20~90% RH (non-condensing)
Compliance
- US/EU standards
- CE/FCC/UL certified
Warranty
2 Year Warranty
