Description

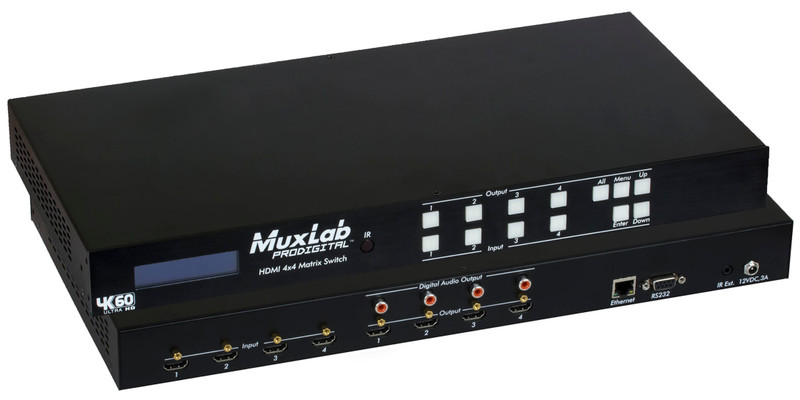

The HDMI 4x4 Matrix, 4K/60 (4:4:4) connects four HDMI sources to four displays. This matrix provide four HDMI outputs supporting up to 4K/60 (4:4:4) plus all 3D formats, and supporting independent EDID control. It works with Blu-Ray players, Media Players/Streamers, Cameras, Set-Top boxes, Home Theater systems, and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS232, TCP/IP or by using the selection buttons on the front panel.
Features:
- Supports HDMI 2.0 (4K/60, 4:4:4)
- Supports 4K/60 (4:2:0) for compatibility with HDBT extenders
- HDCP 2.2 compliant
- Full HDR support
- Powerful EDID management
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio & DTS:X
Technical Specifications
Bandwidth
18Gbps
Resolution
480p to 2160p (4K)
Voltage
110-240VAC to 12VDC
Current
5.0A
Operating Temperature
0° to 40°C
Operating Humidity
Up to 95% non-condensing
Material
Metal
Compliance
- FCC
- CE
- RoHS
Warranty
2 Year Warranty
