Description

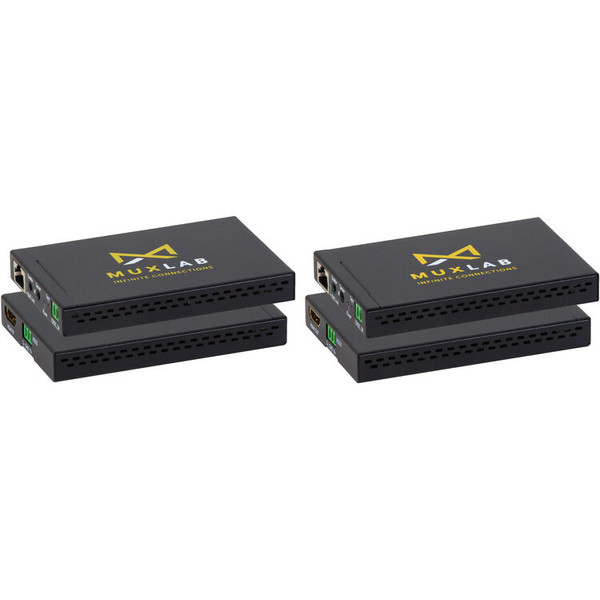

The HDMI Extender Kit 70m, HDBT, UHD-4K supports PoC, allowing one unit to power the other. The kit comes with one (1) transmitter, one (1) receiver, two (2) IR Emitters, and two (2) IR sensors, two (2) phoenix plugs for RS232 and one (1) 12VDC @ 2A power supply.
Features:
- Supports 4K/30 (4:4:4) and 4K/60 (4:2:0) at up to 131ft (40m) over Cat5e/6 UTP
- Supports 1080p/60 with 3D pass-through at up to 230ft (70m) over Cat5e/6 UTP
- HDCP 1.4 & 2,2 compliant
- Supports bi-directional IR and RS232 pass-through, along with CEC to control end devices
- Supports pass-through of all digital audio modes
- Includes IR emitters and IR sensors (carrier-wave)
Technical Specifications
Bandwidth
Up to 340MHz
Voltage
12VDC
Consumption
- Transmitter: 1.8 Watt
- Receiver: 3.6 Watt
Operating Temperature
0º to 40º C
Operating Humidity
up to 90% non-condensing
Material
Metal
Compliance
- FCC
- CE
- RoHS
- UL
- cUL
- TUV
Warranty
1 Year Warranty
