Description

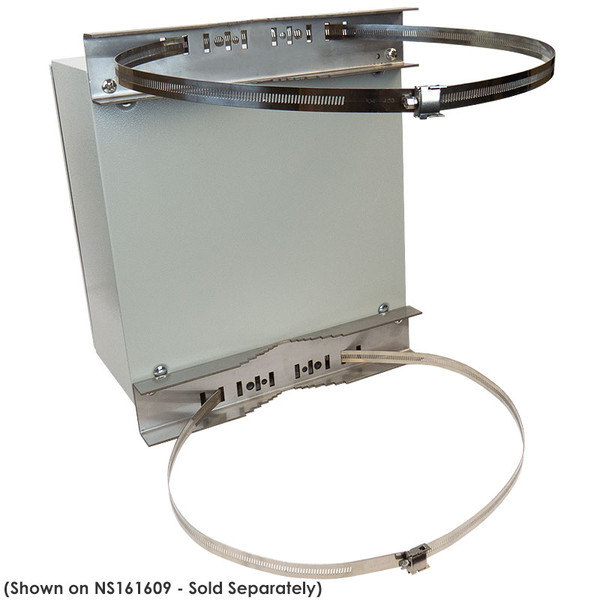

The Altelix NMHK-400-16 Pole Mount Kit attaches to the rear of the Altelix NFC, NS and NX series NEMA enclosures. These heavy-duty stainless steel brackets allow the enclosures to be mounted to poles 1.7 to 16 inches (44.4 to 406.4mm) in diameter using the included heavy duty 304 stainless steel adjustable bands. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated.
Features:
- Includes (2) 14 Gauge Heavy-Duty Stainless Steel Mounting Brackets
- Includes (2) Heavy-Duty 304 Stainless Steel 16 inch Adjustable Bands for Mounting to Poles 1.7 to 16 inches (44.4 to 406.4mm) in Diameter
- Easily Attaches to Rear of Enclosure
Technical Specifications
Warranty
2 Year Warranty
Bracket Type
14 Gauge (2.0mm) Coated Steel
Bracket Dimensions
15.7 x 2.8 x 1.3 inch (400 x 71.4 x 34.9 mm)
Band Material
19 Gauge (1.0mm) 304 Stainless Steel
Band Dimensions
50 in. (1.27m) Long x 0.7 in. (18mm) Wide
Pole Range
1.7 to 16 inches (44.4 to 406.4mm)
Warranty
2 Year Warranty
