Description

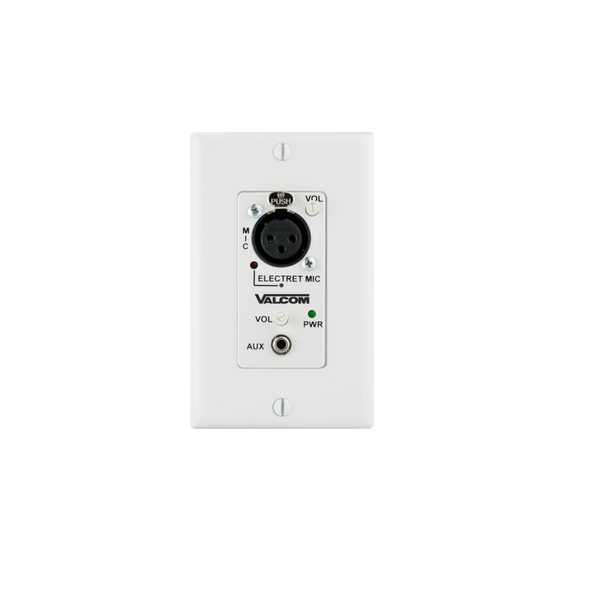

Valcom’s V-9984-W, In-Wall Audio Mixer Remote Module, is a cost-effective solution that eliminates the use of expensive in-wall amplifiers. The complete sound system is ideal for conference rooms, lecture halls, restaurants, auditoriums and gymnasiums.
Features:
- Provides 1 balanced XLR microphone input & 1 auxiliary input for MP3 Players, CD, DVD or PC’s
- Volume control for each input
- Phantom power (Switch Controlled) with “ON” indicator allows use of consumer microphone
- Connects to main control module, w/2 Pair 24 AWG Cable
- Power “ON” indicator
Technical Specifications
Impedance
- 3.5 kOhm
- 100 Ohms
Sound Pressure
-10 dBm nominal
Sensitivity
- 40 uVRMS (-1 dBm out)
- 30 mVRMS
Current
50 mA
Voltage
24VDC
Frequency
2 Hz to 20 kHz ± 1 dB
Operating Temperature
+32 to +122 ºF (0 to +50 ºC)
Operating Humidity
0-85% Non-condensing
Material
Plastic
Color
White
Dimensions
1.64in W x 4.25in H x 2.00in D (4.17cm x 10.80cm x 5.08cm)
Package Weight
2.40lbs (1.08kg)
Mount Type
Single Gang Box Mount
Warranty
1 Year Warranty
Warranty
1 Year Warranty
