Description

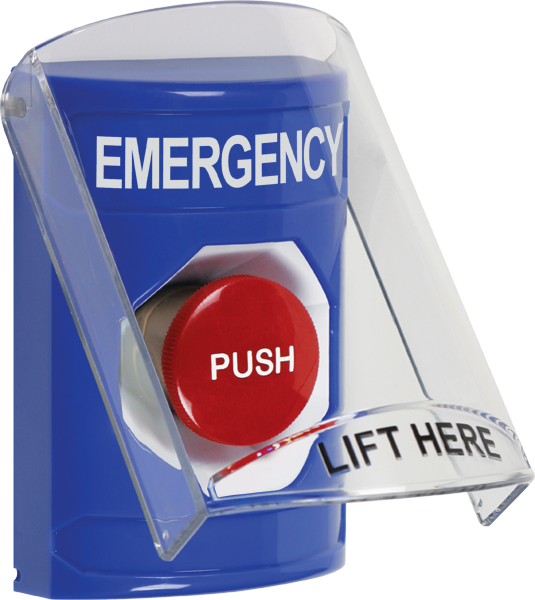

This Stopper Station, momentary push button switch, with shield, is housed in a curved, blue shell with EMERGENCY messaging. Interchangeable or replaceable N.O. or N.C., SPST gold-plated contact blocks rated for 6 amps @ 600 VAC or 1 amp @ 250 VDC. Part of the Stopper Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation. UL/cUL Listed, ADA Compliant.
Features:
- Momentary push button
- Raised LOCKDOWN label
- Interchangeable or replaceable N.O. or N.C., SPST gold-plated contact blocks rated for 3 amps @ 600 VAC or 1 amp @ 250 VDC
- Standard switch includes one N.O. and one N.C. contact. Holds up to three individual isolated contacts
- Protective cover helps protect button from damage and accidental activation
Technical Specifications
Color
Blue
Material
- PC
- Stainless Steel
Operating Temperature
-40°F (-40°C)
Application
Indoor
Voltage
- 120V AC
- 230V AC
- 30V DC
Mount Type
Flush Mount
Compliance
UL/cUL Listed
Warranty
1 Year Warranty
Warranty
1 Year Warranty
