Description

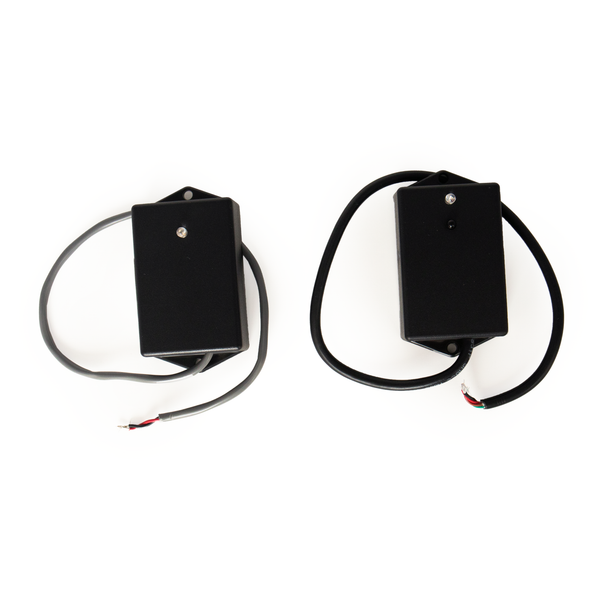

The PC-3 infrared modulated photoeye sensor is an easy-to-install, cost-effective safety device for garage doors and rolling doors. When the infrared beam is interrupted, the relay common and normally open contacts in the receiver are closed. The LED indicator is lit when the PC-3 receiver is not aligned or when the beam is interrupted.
Features:
- Works with any control board that accepts dry contact in the safety input
- Supervised relay output provides an “open” signal in case of power failure
- Non-reflective thru beam configuration is not affected by shiny surfaces
- Modulated infrared beam not affected by sunlight, rain, dust or dirt
- Wide detection angle: 24 degrees
- Indoor or protected outdoor operation of 30 feet
Technical Specifications
Max Read Range
30ft
Voltage
12V – 24V AC or DC
Relay Contact
1A @ 24VDC or 120VAC
Material
PVC
Color
Black
Mount Type
Bracket Mount
Current
Tx: 43mA Rx:23mA Standby 17mA Detect
Operating Temperature
-40Fº - 170Fº
Detection Angle
24º
Indicator
LED
Surge Protection
Thermal Fuse
IP Rating
IP50
Response Time
10mS (max.)
Warranty
2 Years Warranty
