Description

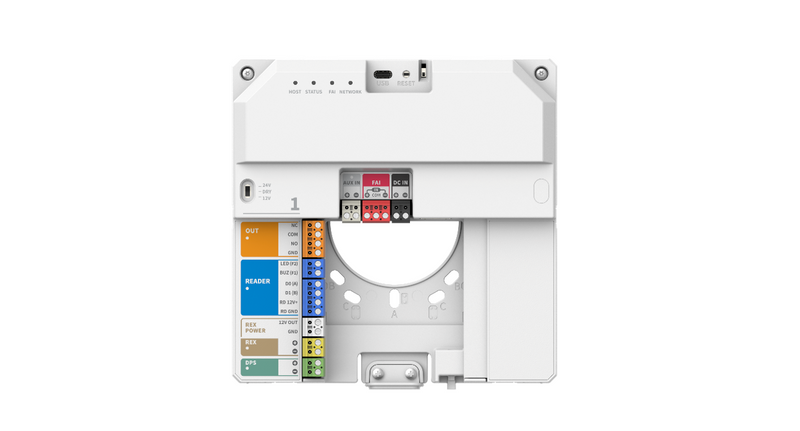

High-performance, One-door PoE+ powered IP Controller. Equipped with one reader port with capacity for up to two OSDP readers. Includes three supervised inputs, and up to two unsupervised patented OSDP Flex inputs. Built-in FAI connection for code compliant output power drop. One field selectable relay output capable of providing Wet (12/24VDC) or Dry contacts for maximum flexibility.
Features:
- 1 Wiegand/OSDP reader port (supports up to 2 OSDP readers)
- Up to 2 unsupervised OSDP flex inputs
- 1 Form-C wet relay output with dry/12VDC/24VDC power selector
- Built-in tamper monitoring
- Onboard power monitoring with memory retention
- Supports up to 50,000 cardholders
Technical Specifications
Ethernet Port
RJ-45(10/100BASE-T)
Protocol
- IPv4
- IPv6
- TCP/IP
- UDP/IP
- NTP
- HTTP
- HTTPS
- SSL/TLS
- SMTP
- ICMP
- IGMP
- SNMP v3(MIB-2)
- ARP
- DDNS
- DNS
- UPnP
- Bonjour
- LLDP
Operating Temperature
-20°C~+60°C (-4°F~+140°F)
Operating Humidity
20~85% RH (non-condensing)
Voltage
- 12VDC
- 24VDC
Consumption
Max 480mA
Color
White
Material
Aluminum
IK Rating
IK10
Compliance
- UL294
- SIA OSDP Verified
- FCC 47 CFR Part 15
- Subpart B
- UL 62368-1
- ULc 62368-1
- UL2043
- California Prop 65
- UKCA
- CE
Memory
8GB
Warranty
5 Year Warranty
