Description

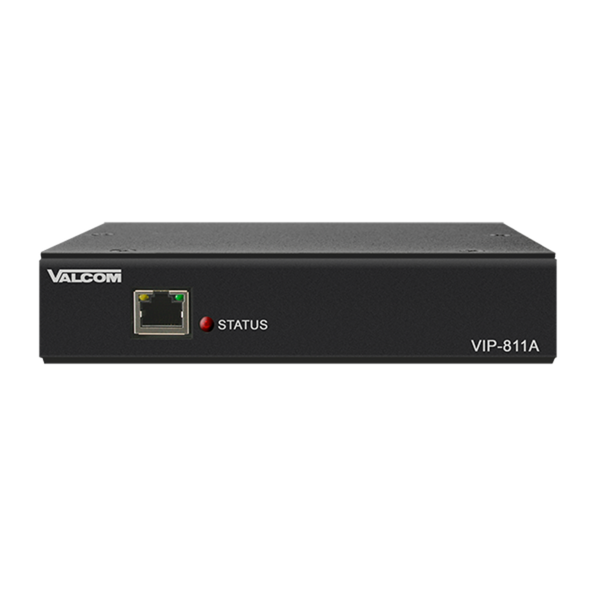

Valcom’s IP Gateway FXS Port, Network — Single Port enables telephones to engage in paging and phone-to-phone communications over an IP-based network.
Features:
- Power over Ethernet (PoE) 802.3af compatible
- Windows based application for control and setup
- Ideal for remote areas where phones are required
- RJ-45 for network connection
- 1 RJ-11 telephone connection
- Indoor use
Technical Specifications
Impedance
600 Ohms
Sound Pressure
-10 dBm nominal
Voltage
24VDC
Current
325 mA
Audio Compression
G.711 u-law
Ethernet Port
10/100 Mbps
Operating Temperature
32 to 104 ºF (0 to +40 ºC)
Operating Humidity
0 to 85% non-precipitating
Material
Steel
Mount Type
- Wall Mount
- Table Mount
Relay Type
Two Form C Relays rated at 1A @ 24 Vdc
Dimensions
1.38in H x 6.13in W x 5.25in D (3.50cm x 15.60cm x 13.33cm)
Protocol
- IETF SIP (RFC3261)
- IETF IGMP version 2 or 3 (RFC2236
- RFC3376)
- IETF RTP (RFC1889)
- IETF RTP Payload for DTMF (RFC2833)
Warranty
1 Year Warranty
Warranty
1 Year Warranty
