Description

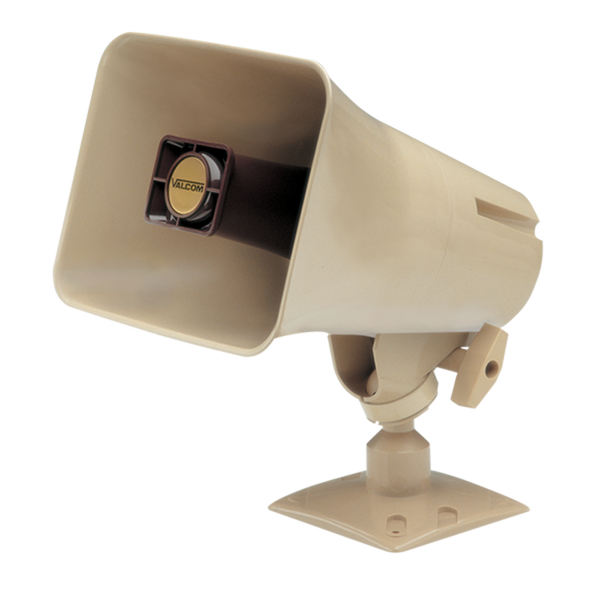

Valcom’s V-9945A Loud Warble Ringer Horn is a two-tone horn designed to broadcast tones throughout your organization to notification individuals of shift changes, breaks or other important announcements. The V-9945A broadcasts a loud warble as long as an input signal is present and have the ability for night rings for after normal business hours. The V-9945A is a two-tone ringer horn that provides amplified electronic tones for signaling in large, noisy or outside areas.
Features:
- Interrupted or uninterrupted contact closure activation
- Warble tone – night ring
- Single tone overrides warble tone if activate simultaneously
- Built-in tone generator, speaker and volume control
- Single tone – time clock/doorbell/alarm
- Indoor/outdoor use
Technical Specifications
Sound Pressure
108 dB measured at 4ft (1.22m) on axis with a -10dBm input at 1 kHz
Current
250 mA
Voltage
24VDC
Operating Temperature
-4 to +131°F (-20 to +55 °C)
Operating Humidity
0 to 95% (non-precipitating)
Material
ABS Plastic
Color
Beige
Dimensions
6.50in H x 8.20in W x 10.40in D (16.51cm x 2
Package Weight
7.30lbs (2.62kg)
Mount Type
- Wall Mount
- Single Double Box Mount
Warranty
1 Year Warranty
Warranty
1 Year Warranty
