Description

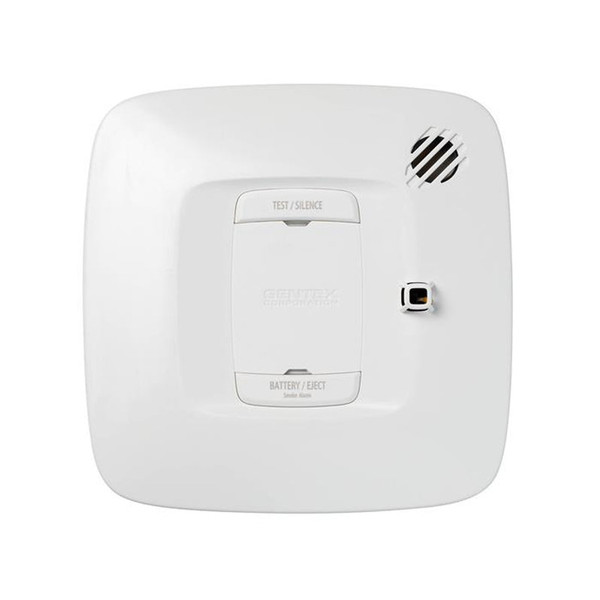

The S/C/SC/H Series devices are for use as evacuation devices in all dwelling units, including but not limited to homes, apartments, hospitals, hotels and motels. The S/C/SC/H Series is provided with a 9V alkaline battery for back-up in the event building power is lost. The S/C/SC/H Series smoke, CO, smoke/CO and heat alarms are ANSI/UL 217, ANSI/UL 2034 and/or ANSI/UL 539 listed and are warranted for one year from date of purchase.
Features:
- S/SR/STRR/SHRR/SC/SCR/SCRR/C/CR/H: available in 120VAC models with 9V battery back-up
- S220/SR220/H220: available in 220VAC models with 9V battery back-up
- S/SR/STRR/SCRR/SC/SCR/SHRR/S220/SR220 feature multi-criteria smoke sensing including photoelectric light scattering sensing technology.
- SC/SCR/SCRR/SHRR/C/CR feature electrochemical CO sensing technology
- STRR/SHRR/SCRR/H/H220 feature heat thermal sensing technology
- Temporal 3 evacuation signal pattern for smoke and heat annunciation
Technical Specifications
Color
White
Voltage
120VAC
Current
0.055A
Operating Temperature
40°F to 100°F
Sound Emission
93dBA
Frequency
3100Hz
Sensitivity
2.5% obscuration
Button Type
Push Button
Battery
Alkaline 9V battery
Compliance
- NFPA 72
- IBC/IFC/IRC
- Quality Management System is certified to: ISO 9001:2008
Warranty
10 Year Warranty
Warranty
10 Year Warranty
