Description

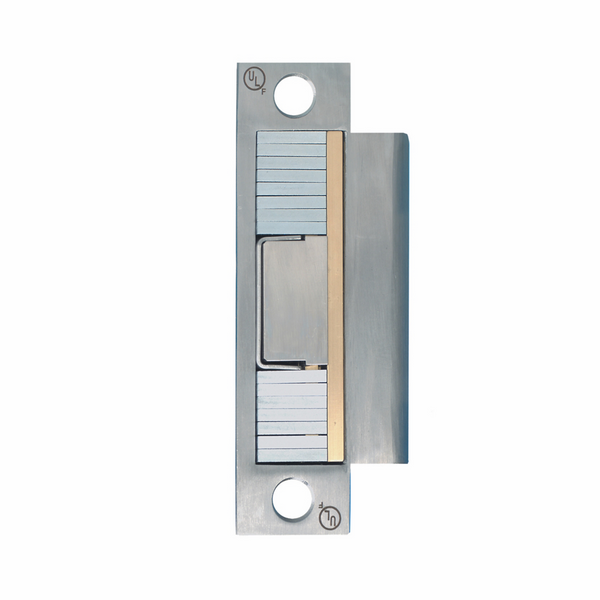

UnLatch for Cylindrical Locks - 12VDC
Features:
- No cutting or altering of the jamb required
- Releases under preload
- Fits standard ANSI 4-7/8" strike cutout
- Motorized, no solenoids
- Fully concealed installation
- Maintains deadlatch function at all times
Technical Specifications
Function
Motorized electric strike for mortise locks
Strike Body Depth
~1.875? (1-7/8?)
Body Height
~3.625?
Body Width
1.25?
Voltage
- 12 VDC (±20 %)
- or 24 VDC
Continuous Current Draw
40 mA
Operating Surge Current
- 700 mA (12 V)
- 500 mA (24 V)
Operating Temp
–20 °F to +125 °F (–29 °C to +52 °C)
Power Rectifier
Full-wave DC acceptable
Holding Force
- ~1
- 500 lb static
Preload Release
- Yes
- releases under preload
Deadlatch Feature
Maintains dead-latch function
Standard Cutout Fit
ANSI 4-7/8? strike cutout
Latch Sensor
SPDT latch status monitor
Installation
No jamb modification required
Motorized Action
Yes (no solenoids)
Compliance
- UL 10C
- ANSI/BHMA A156.31 Grade 1
- NFPA-252
- Windstorm-rated
Finish Options
- US26D (stainless)
- US10B (oil-rubbed)
- US03 (bright brass)
Finishing
Brushed stainless or brass/bronze plating
Material
Stainless steel and alloy steel
Warranty
Limited Lifetime Warranty
Certifications
- UL & CSA listings
- fire-rated
- ANSI/BHMA
- windstorm
Dimensions
3.625?×1.875?×1.25?
Warranty
Limited Lifetime Warranty
