Description

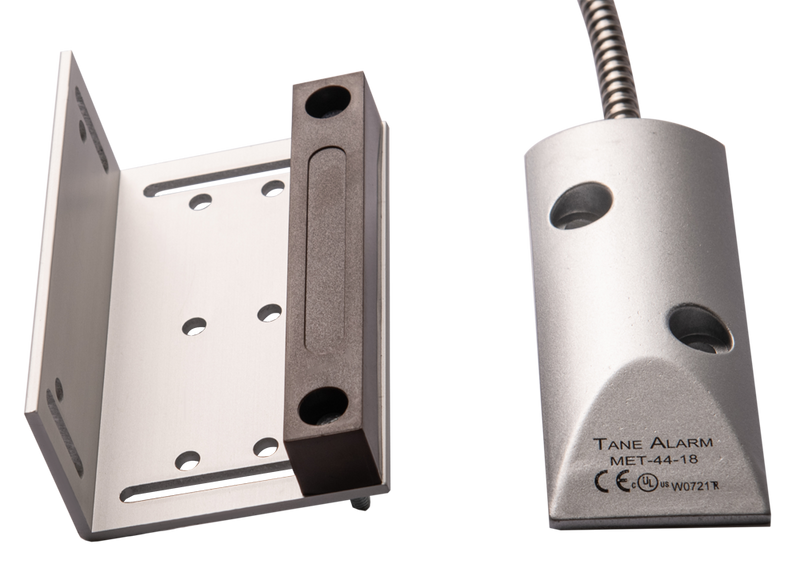

Overhead Door Magnetic Contact Set ALARM Overhead Door Magnetic Contact Metal Screw terminals make installation fast and easy. - All-purpose mounting bracket. The TANE MET44WG18 Overhead Door Contact Set is a miniature low-profile reed switch in a cast aluminum for durability in harsh environments. The MET44WG18 features a wide working gap of up to 2" with 18" of heavy duty armored cable for protection from the elements and a versatile universal magnet which can be mounted at various angles for those difficult installations.
Features:
- Overhead Door Magnetic Contact Set Armored cable in 36"
- Alarm Overhead Door Magnetic Contact (Metal)
- Screw terminals make installation fast and easy. - All-purpose mounting bracket.
Technical Specifications
Loop Type

										Closed



































Operation Gap

										2″(50)

Reed Form

										Normally Open



































Max Framerate

										10

Coil Resistance

										100



































Voltage

										AC110/DC100

Current

										0.5



































Compliance
				- CE
- RoHS
- US Listed
Operating Temperature

										-40°C to +60°C



































Mount Type

										Surface Mount

Cable Length

										36in
