Description

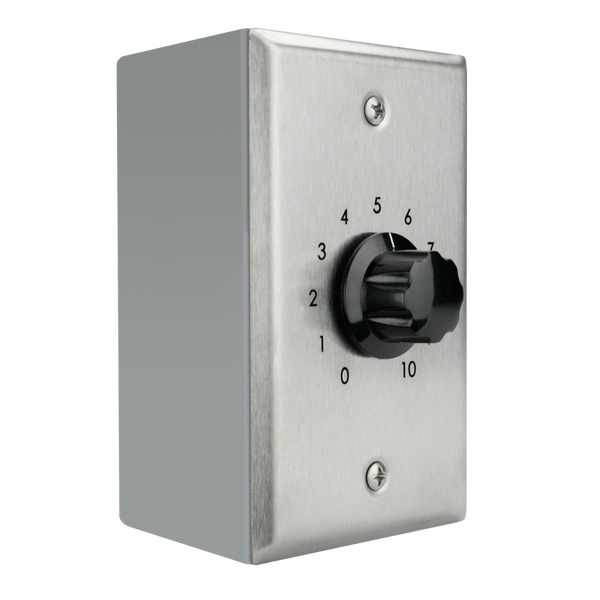

Valcom’s V-1094A Page Port Preamp/Expanders are a solid state audio amplifier that expands the number of Valcom amplified speakers on a zone. The V-1094A features a brushes stainless-steel plate with embossed numbers and bell box (single gang electrical wall box). The page port preamp/expander will interface 600-ohm type page ports to up to 150 Valcom amplified speakers or expand the number of Valcom amplified speakers on a zone by 150.
Features:
- Brushed stainless-steel plate
- Surface or wall mounted options
- Embossed numbers from 0 to 10
- Single gang surface mount bell box included
- Isolates page port from speaker lines
- Pre-amplified low level audio to remote sites
Technical Specifications
Color
Gray
Material
Stainless Steel
Impedance
- Input: 600 Ohms
- Output: 8 Ohms
Frequency
80 Hz to 10 kHz +/- 3 dB
Voltage
-21 to -26 Vdc Idle
Current
15 mA Sound Pressure +8 dB maximum (Into 8-Ohms load)
Mount Type
- Wall Mount
- Surface Mount
Dimensions
4.50in H x 2.75in W x 2.00in D (11.43cm x 6.99cm x 5.08cm)
Package Weight
3.00lbs (1.35kg)
Warranty
1 Year Warranty
Warranty
1 Year Warranty
