Description

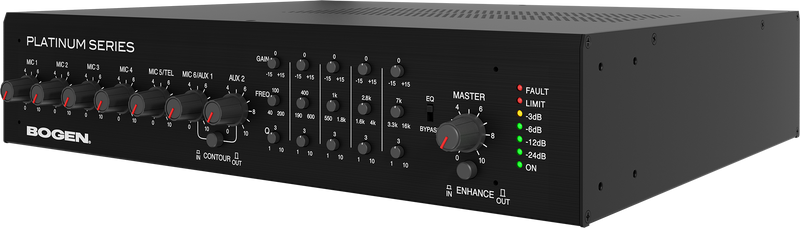

The next generation of Bogen’s Platinum Series (PS) Amplifiers delivers the highest audio volume for all speaker types at specified power levels, eliminating the need for an external impedance matching transformer.
Features:
- Increase design flexibility and enable a wide variety of installation configurations with a single amplifier, allowing either 8-ohm/25V, 70V operation.
- 4 Dedicated microphone inputs (XLR connectors MIC 1-4) with selectable phantom power
- 5-band full parametric equalizer with independent Gain, Frequency, and Q controls
- True loudness contour function on AUX 1 and AUX 2
- Audio Enhancement feature for improved voice intelligibility with adjustable level
- Remote master volume control capability (using optional GSRVC)
Technical Specifications
Input Type
240 watts
Frequency
- 20 Hz to 20 kHz
- +0/-2 dB @ -2 dB
Distortion
- 0.3% (typ.)
- 20 Hz to 20 kH
S/N Ratio
- Fundamental: -70 dB or better
- AUX 1 & 2: -70 dB
- TEL: -70 dB or better@ 600-ohms
- MIC 1 through MIC 6: -60 dB or better @ 200 ohms
Voltage
- 100-240VAC
- 50/60 Hz
Current
2.37A
Protection
- Overload: Electronic with automatic reset
- Thermal: Thermistor attached to heat sink
