Description

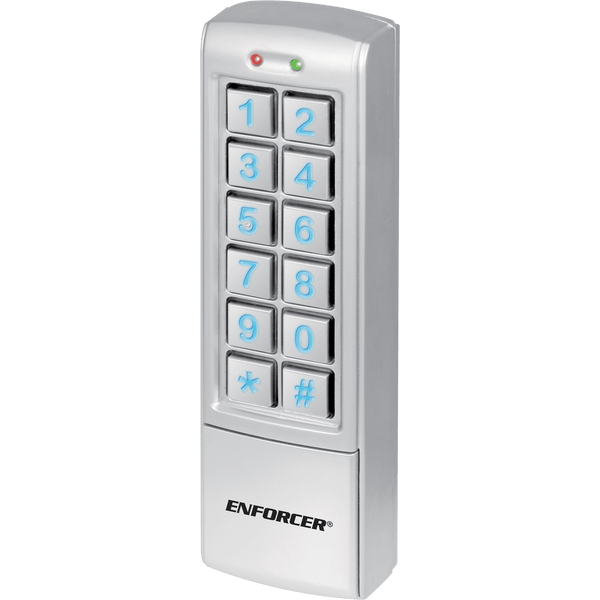

Mullion-Style Weatherproof.All features are programmed directly from the keypad.
Features:
- 2 Form C relay outputs
- Each relay has programmable output time from 1~99 seconds or toggle
- Output #2 can be programmed for use with a doorbell
- 2 Egress inputs and 1 door sensor input
- Backlit keys for easy nighttime use
- All features are programmed directly from the keypad — no need for an external programmer
Technical Specifcations
Voltage
12~24 VAC/VDC
Current
Standby: 64mA@12VDC
Relay Type
- 1:Form C
- NO/NC/COM
- 2: Form C
- NO/NC/COM
Relay Output
- 1: 1A@30VDC
- 2: 1A@30VDC
Egress Input
- 1: N.O. ground
- 2: N.O. ground
Tamper Type
Optical Sensor
Operating Temperature
-4°~122° F (-20°~50° C)
Operating Life
- 60
- 000 hours (over 6.8 years)
Frequency
N/A
Ingress Protection Rating
IP65
