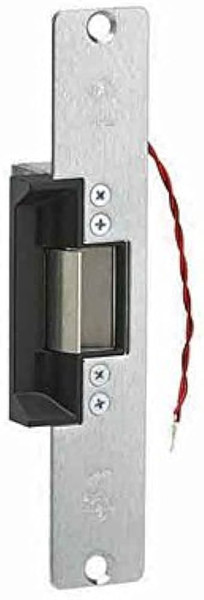

Description
Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. For use in aluminum, hollow metal, or wood applications.
Features:
- 16V
- AC intermittent
- Fail-Safe
- Amber Anodized (652)
Technical Specifications
Faceplate Type
7110 – Flat with radius corners
Finish Code
652 – Dark bronze anodized
Body Material
Steel
Keeper Material
Stainless steel
Dimensions
1″ × 3‑3/8″ × 1‑5/8″
Strike Opening
5/8″ × 1‑7/16″ × 1/2″
Latchbolt Projection
½″–⅝″
Voltage Range
12/16/24VAC/DC
Current (12V DC)
0.33A
Current (16V DC)
0.22A
Current (24V DC)
0.17A
Fail Mode
Field selectable fail‑safe/fail‑secure
Certifications
- UL 1034
- UL 294
Handing
Non‑handed
Lock Compatibility
For 4500/4900 deadlatches & cylinders
Installation Environments
- Aluminum
- hollow metal
- wood
Lip Extension
Available for flat faceplate (see dash code)
Faceplate Size
1‑7/16″ × 7‑15/16″
Surface Finish
- Dark bronze anodized faceplate
- steel body
Monitoring Switch
Optional Form‑C monitoring
Accessories
- Screws
- clips
- shims
Warranty
5‑Year Limited
Warranty
5‑Year Limited Warranty
