in stock

Adams Rite

SKU 7400M628 7400M628

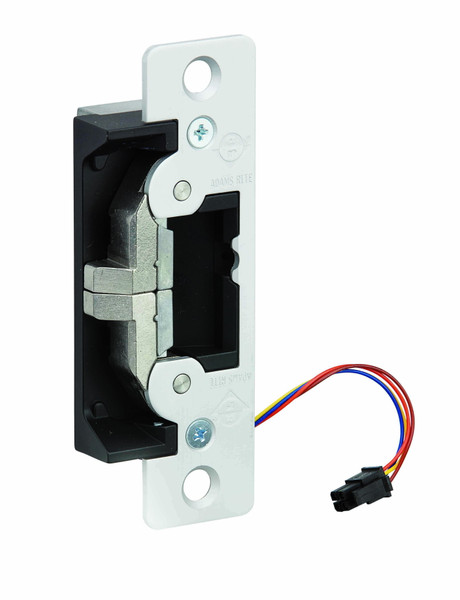

Ultraline® Electric Strike Flat Faceplate - Monitored, Clear Anodized - 7400M628

Product Rating Product Rating Product Rating Product Rating Product Rating 0 Reviews
Write a Review
Price:
$366.56
  • Weight:
    2.00 LBS
  • Shipping:
    Calculated at Checkout

Key features

Finish Clear Anodized
Feature Monitored
Faceplate Shape Flat
Actuator Type Solenoid
Adjustability Horizontal
Connector Type Molex
Sale assistant
Contact our Sales Team for a tailored experience
Adding to cart… The item has been added
?Special Order Information
Sign In for Dealer Pricing Become a BLVS Customer

Description

This non-handed strike features an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strike releases electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power. Remote electrical control of narrow stile aluminum doors equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.

Technical Specifcations

Finish
Clear Anodized
Feature
Monitored
Faceplate Shape
Flat
Actuator Type
Solenoid
Adjustability
Horizontal
Connector Type
Molex
Current 12v DC
440mA
Current 16v DC
458mA
Current 24v DC
230mA
Dynamic Strength
70 foot-pounds
Endurance
250000 cycles
Faceplate Included
Yes
Fail Safe | Fail Secure
Field selectable fail safe/fail secure
Frame Material
Aluminum
Fully Finished Product
No
Handing
Non-handed
Latchbolt Accommodation
1/2 - 5/8 inch
Line Voltage
  • 12VDC
  • 16VDC
  • 24VDC
Lip Length
1.75 inch
Monitoring Installation
Factory Configured
Monitoring Options
Lock Monitor
Monitoring Type
Switch
Motor Duty [DC]
Continuous
PoE Friendly
No
Power Source
Hardwired
Preload Capable
Yes
RoHS Compliant
No
Shim Type
Field Adjustable
Static Strength
1500 pounds
Strike Depth
1.0625 inch
Strike Height
4.875 inch
Strike Width
1.6875 inch
Surface Mounting
Cutting required
Tamper Resistant
No
Trim Enhancer Included
No
Windstorm Resistant
No

Datasheet
