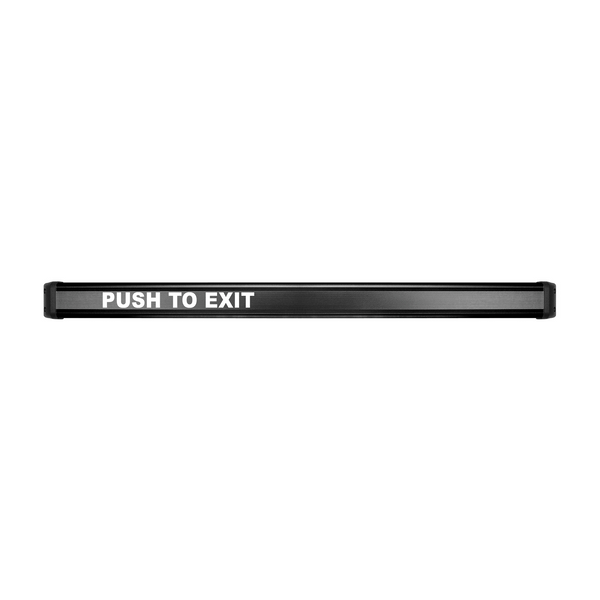

Description
36" (Standard), 42", or 48"
Features:
- Low profile design requires only 1/4" movement for activation
- Three standard lengths: 36", 42" or 48"
- Can be field cut to accommodate non-standard openings up to 48"
- Uses same mounting pattern as the TSB-3 and DSB
- Retrofits to most competitors mounting patterns
- Activates a DPDT 5 Amp rated output when pushed which will allow free egress or initiate the delay on an exit delay timer
Technical Specifcations
Function
Exit bar: mechanical activation releases mag-lock on non-fire-rated doors
Material
All-metal construction
Finishing
Black anodized (BK) or clear anodized (CL)
Bar Length Options
- 36?
- 42?
- 48?
Field-Cuttable
Yes—custom fit up to length options
Activation Travel
¼? (6.35 mm)
Switch Configuration
- DPDT mechanism
- 5 A output for free-egress or delay egress
Redundant Switches
Includes four internal switches for reliability
Max Electrical
1.5 A @ 30 V DC
Includes Cable/Cord
16 ft 6-conductor 22 AWG plus armored door cord
Certification
- UL 294
- CAN/ULC-S533; CSFM; CE (EN 50091-1
- EN 61000-6-2)
Operating Temp
–4 °F to 185 °F (–20 °C to +85 °C)
Indoor/Outdoor Use
- Indoor
- optional weather-resistant upgrade
Mounting Pattern
TSB/DSB competitor footprint-compatible
Cable Length
16 ft (4.8 m)
Warranty
Limited Lifetime Warranty
Shipping Weight
7–9 lbs (3.2–4 kg)
Compliance
- Meets UL
- CAN/ULC
- CSFM
- CE standards
Code Requirement
“No special tools or knowledge” – meets code
Retrofit Capability
Compatible with competitor door-prep footprints
Switch Upgrades
Optional weather-resistant switches
Anodizing Standard
Black or clear anodize per ASSA ABLOY finish spec
Non-Fire Rated Doors
Specifically for non-fire-rated doors
Warranty
Limited Lifetime Warranty
