Description

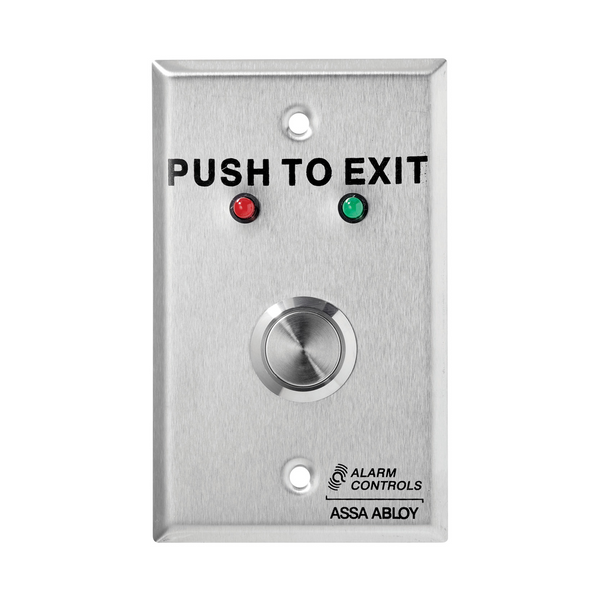

3/4in Round, Metal Push Button, DPDT 2A Momentary Contacts, PUSH TO EXIT, 1-3/4in Narrow, SS Wall Plate, UL Listed
Features:
- Vandal resistant 3/4" push button
- Switch mounted on wall plate
- Options for wall plate size, LEDs, time delay
- Options for wall plate size, LEDs, time delay
- Momentary action switch
- Custom screening available
Technical Specifcations
Series
TS-13 narrow stile
Button Diameter
Âľin vandal-resistant brass nickel-plated
Plate Type
Narrow 1.75in stainless steel plate
Material
302 stainless steel plate & brass button
Finish
Brushed satin stainless steel
Contact Configuration
- DPDT momentary switch
- 10 A @ 35 VDC
Lead Length
10in color-coded leads
Switch Depth
1.5in behind plate
Compliance
- UL 294 listed
- CSA components
- IP65
Vandal Resistance
Yes—robust SS/brass construction
Water Resistance
IP65 for direct spray
Message Label
PUSH TO EXIT screened
Warranty
Limited Lifetime Warranty
Warranty
Limited Lifetime Warranty
