Description

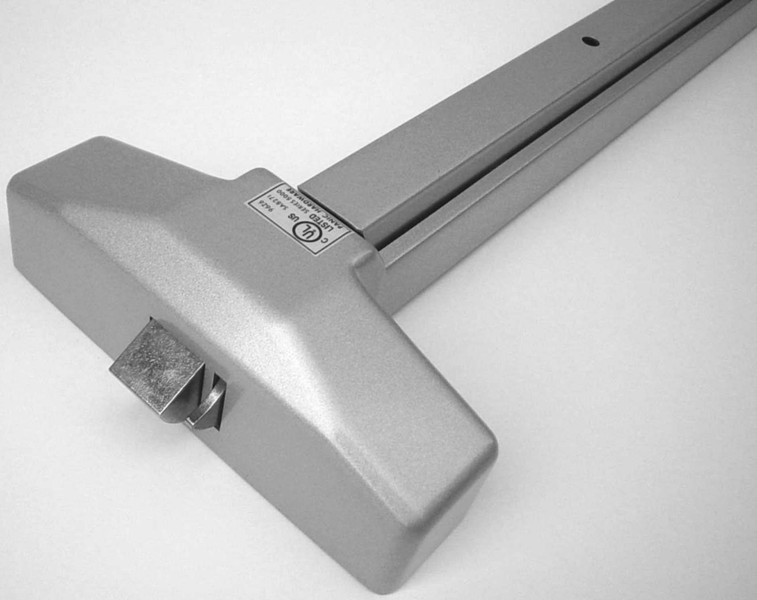

Horizontal reversible, rim type touch bar exit devices UL525 series fit a 25" to 36" wide door, and can be used with a cylinder, keyed ball knob or keyed lever or a pull. Available in aluminum, or duranodic finishes. Devices are packed with latch and strike filler plate, Available in aluminum finish, may also be used with a cylinder, key ball knob, keyed lever or a pull.
Features:
- Deadlatching
- Non-handed for use on right or left opening doors
- Complete with rim strike latch, shim, fasteners, mounting templates and easy to follow instructions
- Vertical panic device for double door installations (see pages 40 and 41 for accessories)
- Vertical unit can be cut to size. Fits doors up to 36" x 96"
- Vertical Touch Bar is used with the UL525 horizontal device.
Technical Specifications
Finish
Aluminum
Compliance
- UL525 listed
- ADA
Mount Type
Surface Mount
Grade
ANSI/BHMA Grade 1
Material
- Extruded aluminum bar
- steel mechanism
Latch Type
Deadlatching
Warranty
1 Year Limited Warranty
