Description

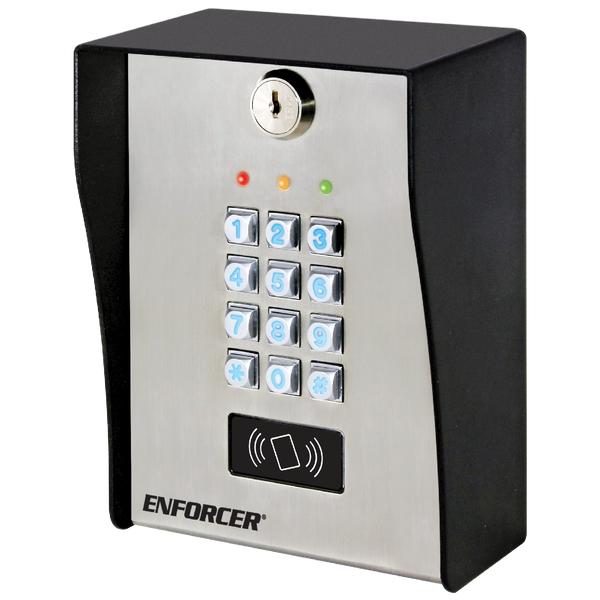

This Seco-Larm SK-3133-PPQ Heavy-Duty Outdoor Access Control Keypad with Proximity Reader combines advanced security features with rugged durability, making it an ideal choice for outdoor access control. With its vandal-resistant construction, built-in proximity reader, and versatile operation capabilities, this keypad ensures reliable performance in various environments.
Features:
- Heavy-duty stainless-steel faceplate with a coated steel backing provides exceptional durability against harsh weather conditions.
- Allows for seamless access control using proximity cards, enhancing convenience for users.
- Auto-adjusting power capabilities ensure compatibility with various systems, enhancing versatility.
- Guarantees protection against dust and heavy rainfall, ideal for outdoor installations.
- Enables the creation of up to 50 temporary codes, allowing for easy access management for visitors.
- Lets users exit without needing to input a code, providing a quick and easy exit option.
Technical Specifications
Voltage
12~24 VAC/VDC
Current
- Standby: 80mA
- Keypress: 114mA
- Output 1 active: 150mA
- Outputs 1 & 2 active: 180mA
- Outputs 1
- 2
- & 3 active: 220mA
- Wiegand data output: 150mA
Output Type
- Durass: 100mA@24VDC
- Interlock: 100mA@24VDC
- Tamper: 50mA@24VDC
Material
- Faceplate:1/16″ (1.5mm) Stainless steel
- Housing: 5/64″ (2mm) Anodized steel
- powder paint
Input Type
- Egress: N.O.
- Ground Door sensor: N.C.
- Ground Door inhibit: N.O. Ground
Frequency
125kHz (EM125)
IR Range
1-1/2″ (38mm)
Ingress Protection Rating
IP66
Operating Humidity
- 5~95%
- non-condensing
Operating Temperature
-4º~158º F (-20º~70º C)
Compliance
- cULus
- RoHS
- UL
- CUL listed
- FCC
Dimensions
5-1/4″x7-1/16″x3-3/8″ (133x180x85 mm)
Weight
3-lb 12-oz (1.7kg)
Warranty
1 Year Warranty
