Description

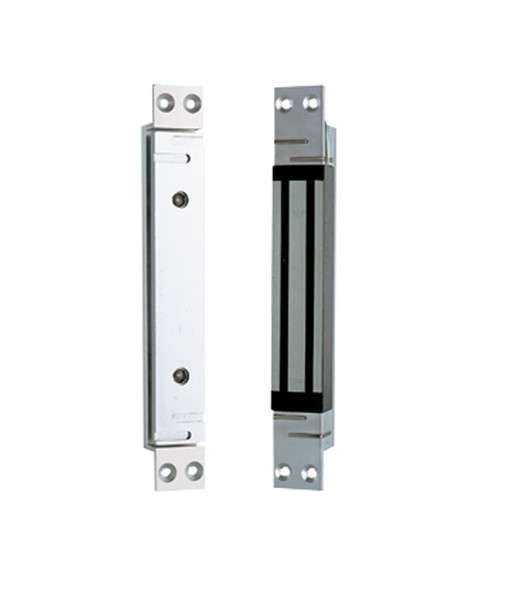

The CZ3000 is a compact, self-aligning shear lock ideal for doors that open in two directions. The CZ3000's construction and 1 inch (25 mm) width make it suitable for narrow aluminum and wooden doors. Thanks to the patented self-aligning anchoring system, a holding force of 3,300 lb (1500 kg) is guaranteed. It can be installed flush with the floor or mounted on a door thanks to its surface-mounted housing (in brushed stainless steel). A varistor is integrated into the electronics, protecting sensitive control elements such as keypads and access control systems from EMC.
Features:
- 3,300 lb (1,500 kg) holding force
- Self-Aligning
- Compact mortise-mount
- Optional surface mount kit (KCZ 3000)
- Fail safe
Technical Specifications
IP Rating
IP42
IK Rating
IK10
Mount Type
Flush Mount
Operating Temperature
-13°F / -25°C(158°F / 70°C
Voltage
12/24DC
Consumption
450 (12V) 225 (24V)
Material
Aluminum
Color
Gray
Warranty
10 Year Warranty
Warranty
10 Year Warranty
