Description

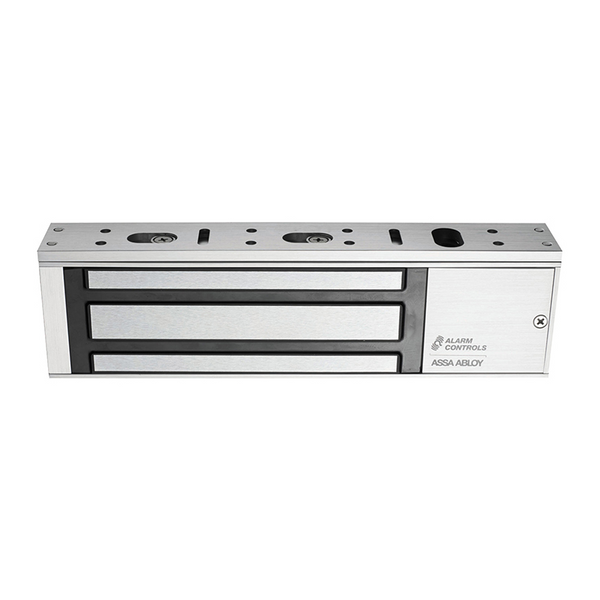

1200 Pound Single Door Magnetic Lock w/ LED, Bond Sensor & Door Status Sensor
Features:
- Built-in arc suppression
- Instant release, no hysteresis
- Self drilling TEC screws
- Non-aluminum parts are plated to resist corrosion
- E-Z mount system, no special tools required
- Can be used with any access control system
Technical Specifications
Holding Force
1200 lb (minimum)
Mount Type
Bracket-mounted
Dimensions (Magnet)
10½in L × 2?in H × 1½in W
Dimensions (Armature)
7¼in L × 2?in H × ?in W
Input Voltage
12 or 24 VDC (field-selectable)
Current Draw
505 mA @ 12 V / 260 mA @ 24 V
Indicators
Bi-color LED status indicator
Bond Sensor
Yes (SPDT 3 A relay)
Door Status Sensor
Yes
Arc Suppression
Built-in
Release Type
- Instant
- no hysteresis
Mounting Hardware
Self-drilling TEC screws
Warranty
Limited Lifetime Warranty
