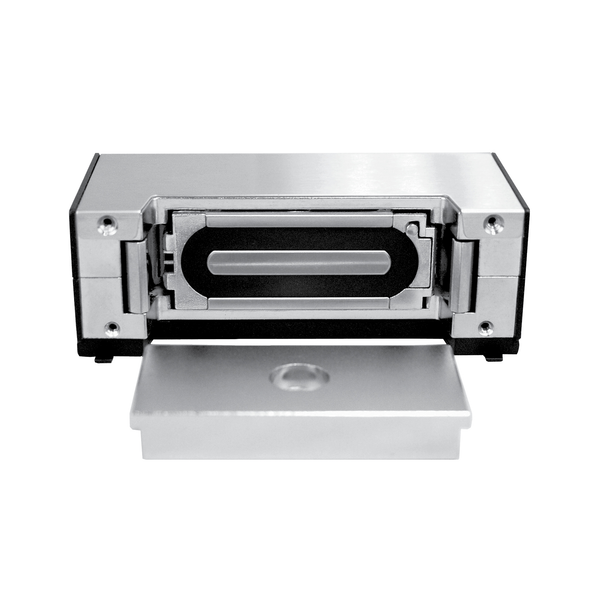

Description
12/24 V, AC/DC, Gate Conduit, DPS, Tamper Switch
Features:
- 4000 lbs holding force provides an unmatched level of security
- Dual voltage (12/24) and dual current (AC/DC) operation
- Mounting plate provides easy and accurate installation
- Fail Safe, but can be installed with a battery backup power supply
- Optional door position switch and anti-tamper switch
- Optional prep for use with 1/2" conduit
Technical Specifications
Includes Conduit Prep
Yes—½? conduit
Includes DPS & Tamper
Yes
Grade
Grade 1
Electrical (12 V DC)
100 mA
Electrical (24 V DC)
200 mA
Electrical (12 V AC)
130 mA
Electrical (24 V AC)
250 mA
Operating Temp
–40 °F to +140 °F (–40 °C to +60 °C)
Mounting
Bracket-mounted with mounting plate
Safety Mode
Fail Safe
Indoor/Outdoor Usage
Indoor only
Finishing
- Standard brushed stainless; optional black
- polished brass
- satin brass dress covers
Material
- Hardened steel jaws
- stainless steel housing
Dimensions
6" × 2.75" × 1.875" (152 × 70 × 48 mm)
Shipping Weight
6 lbs (2.72 kg)
UL Certification
UL 294 listed
Fire Rating
- UL 10C
- 1 hr
Canadian Certification
CAN/ULC-S533 listed
Patent
- US 6
- 902
- 214
Conduit Connection
MM15G/GDT includes ½? conduit prep
Monitoring Options
MM15DT/GDT include DPS & tamper switch
Tamper Shield Option
MM15-TS accessory
Compliance
- UL
- CAN/ULC
- RoHS
Finish Code
US26D/626 (brushed stainless)
Warranty
Limited Lifetime Warranty
Warranty
Limited Lifetime Warranty
