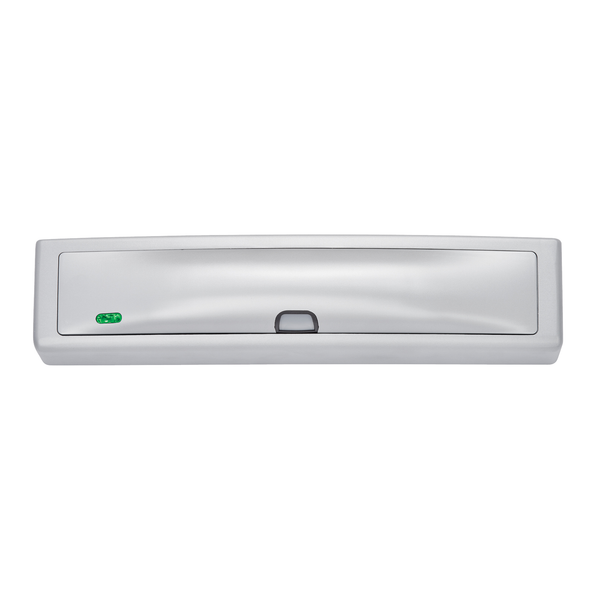

Description
BondSTAT, DPS, REX
Features:
- Strike plate mounting template provides the easiest install for out-swing doors
- LED Indicator shows the lock is secure, open, or has an incomplete bond
- Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
- Optional integrated BondSTAT and integrated Door Position Switch
- Autosensing dual voltage with microprocessor technology
- Adjustable automatic relock timer (0 to 30 seconds)
Technical Specifications
Holding force
- 1
- 200 lb
Power voltage
- 12/24 VDC dual-voltage
- auto detect
Current draw
- ~515 mA @12 V
- ~325 mA @24 V (BDX model)
Material
- Base: zinc plated
- body: steel/aluminum
Finishing
Satin aluminum clear anodized (628/US28)
Compliance
- CE standards (assumed
- as UL listed and European finishes)
Sensor options
- BD BondSTAT
- Door position
- PIR
- request-to-exit
Door thickness
1¾? (standard)
Dimensions
11 ½? × 2 ?? × 2 ½? (292×54×64 mm)
Operating temp
Max 110 °F (~43 °C)
Mounting
- Surface mount standard
- brackets sold separately
Environmental
EcoMag consumes ~80% less energy
Cleaning
Paintable primer finish option
Finish options
600/605/606/612/613E/629/630/BSP/WSP
Cable
6 ft (1.83 m) jacketed cable
Installation
EcoMag includes intelligent door prop-sensing circuit
Warranty
Limited Lifetime Warranty
Origin
USA distribution
Warranty
Limited Lifetime Warranty
