Description

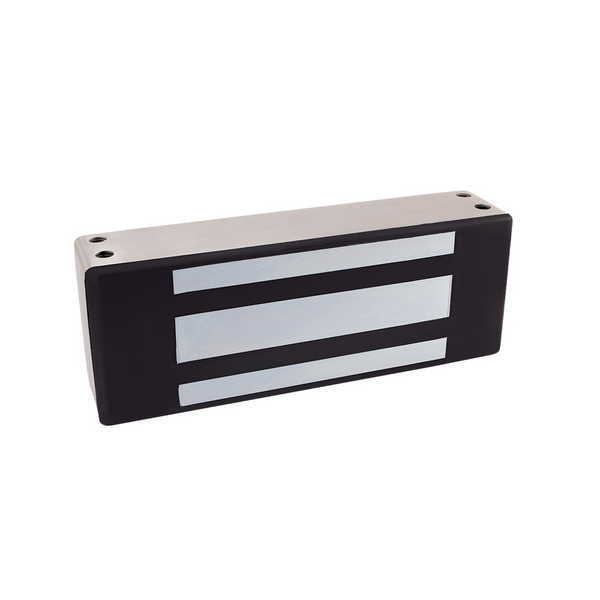

BondSTAT Monitor
Features:
- PoE friendly
- Fire rated—3 hours
- Sustainability documentation
- Automatic dual voltage - no field adjustment required
- Fully sealed electronics - tamp and weather resistant
- Size optimized for use with door closers
Technical Specifcations
Function
- Electromagnetic lock
- fail-safe
Holding Force
- 1
- 200 lbs (544 kg)
Voltage
12/24 VDC automatic
Currents
- 250 mA (12 VDC)
- 150 mA (24 VDC)
Operating Temp
–40 °F to +140 °F (–40 °C to 60 °C)
Dimensions (magnet)
8? × 1¾? × 3? (203 × 44.5 × 76 mm)
Dimensions (armature)
6? × ½? × 2¾? (152 × 12 × 70 mm)
Material
- Ferrous metal
- plated MIL-spec; stainless housing
Finishing
US32D/630 satin stainless steel
Seal Rating
Fully sealed electronics
Mounting
Surface mount with blind blind-nuts
Cable
10 ft stranded conductor
Conduit Fitting
½? female to ¾? male
Sensors
- B = BondSTAT
- D = Door Position Switch
Instant Release
- Patented circuit
- no residual magnetism
Noise Suppression
Built-in MOV
Finish Compliance
Plated to MIL spec
Warranty
Limited Lifetime Warranty
Compliance
- UL 10C
- CAN/ULC S533
- UL 294
- ANSI/BHMA A156.23 Grade 2
- CSA-C22.2
- CSFM
- CE
Shipping Weight
~11 lbs (5 kg)
Indoor/Outdoor Use
- Suitable for both
- NEMA 4X equivalent
Pack Qty
1 unit (frame + armature)
Fire Rated
UL 10C listed (3h)
Variants
- M62B
- M62D
- M62BD for sensors; F/G for mounting options
Warranty
Limited Lifetime Warranty
