Description
Features:
- Detects door movement of approximately ½″–¾″ (12–19 mm) to send a signal to the XDT logic timer for delayed exit
- Allows the door to move away from the strike while still engaged, facilitating accurate movement sensing

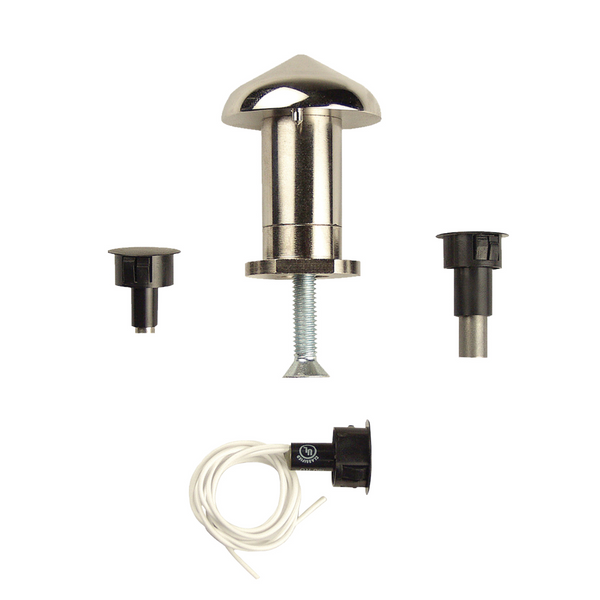

- Includes reed switch and two magnet actuators (small for wood/aluminum, larger for steel) to send the initiate signal
- Comes with sex bolt, extension tube, shim plate, two long roll pins, plus necessary hardware for easy installation
- Durable construction in 630/US32D finish ensuring longevity and suitability for standard (1¾″) doors, with options for thicker/thinner doors
- Covered by Securitron’s lifetime, no-fault warranty for maximum reliability
Technical Specifications
Function
Detects door movement and initiates delayed-egress signal via XDT timer
Kit Components
- Sex bolt (internal spring)
- magnetic reed switch
- two actuators (small + large)
- extension tube
- shim plate
- long roll pins
Door Movement Tolerance
- ½?–¾? (12–19 mm)
- typical; options for thin/thick doors
Designed Door Thickness
- Standard 1¾? (44.5 mm)
- works up to 1.95? (49.5 mm)
Compatibility
Works with Securitron Magnalocks + XDT logic timers
Power Input
12 V DC or 24 V DC (switch wiring to XDT)
Material
Stainless steel housing and hardware
Finishing
Satin stainless steel (630/US32D)
Mounting Hole Size
Requires 1? (25.4 mm) diameter hole in door
Switch Hole Size
Reed switch/actuator require ¾? (19 mm) holes
Magnetic Actuators
- Two sizes: small for non-ferrous
- large for steel doors
Wiring Outputs
Reed switch leads connect to “+” and “IN” on XDT timer
Compliance
BAA compliant
Fire Rating
Non-rated (not fire-tested)
Burglar Rating
Not burglar-rated
Warranty
Limited Lifetime Warranty
Mounting Template
Template provided in manual for alignment/drilling
Installation Style
- Hardwired via XDT timer
- no drilling other hardware
Operating Conditions
- Suitable for standard commercial doors
- no extreme environment data
Extension Tube Included
Yes – for accommodating thicker doors
Shim Plate Included
Yes – for stability and alignment
Reed Switch Type
Normally-closed reed switch actuates with movement
Certifications
Meets Securitron’s quality and US standards (e.g. BAA)
Warranty
Limited Lifetime Warranty
