Description

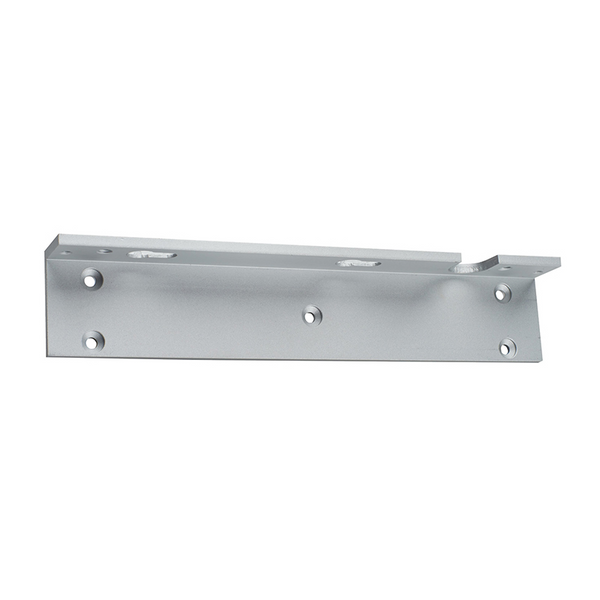

Three Piece Z Bracket for 1200 Series Double Magnetic Locks
Features:
- Available for both 600 lb and 1200 lb mag-locks, with options for single and double configurations.
- Optional integrated dress covers (models ending with C) improve installation appearance.
- Variable depth allows precise alignment of the armature plate for proper magnetic bonding.
- Varying lengths and heights tailored to lock capacity and installation needs.
- Standard anodized, with dark bronze finish available on request to match different frame styles.
- Z-shape design enables effective installation on doors that swing outward.
Technical Specifications
Type
Three-piece Z-bracket
Use With
1200 Series double magnetic locks
Dimensions
10.625" L × 4.25" H
Adjustment Range
2.375"–3.5" (60–89 mm)
Finish
- Clear anodized aluminum (US28)
- satin aluminum option
Material
Aluminum
Unit of Measure
Each
Package Quantity
Single bracket set
Mounting
Surface mount
Purpose
For double-lock magnetic door frames
Compliance
1200 Series mechanical standards
Warranty
Limited Lifetime Warranty
Warranty
Limited Lifetime Warranty
