Description

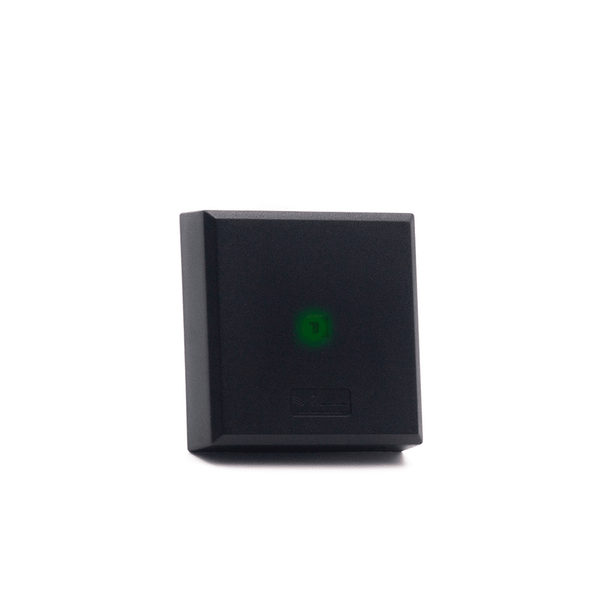

The Keri Systems P-530H 125 kHz Proximity Card Reader combines advanced RFID technology with robust security features to provide a reliable and efficient access control solution. With its compatibility with various proximity card technologies and enhanced functionality, this reader ensures secure, maintenance-free operation for a variety of electronic security applications.
Features:
- Wiegand and magnetic stripe protocols enable seamless compatibility with standard access control systems, simplifying installation and use.
- Supports multiple proximity card and tag technologies, offering flexibility for different security requirements.
- Offers non-contact read ranges up to 6 inches (152 mm), allowing users to gain access without physically touching the reader.
- Tamper- and weather-resistant epoxy potting secures the electronics, ensuring long-term operation in various environments.
- Electronics are secured with tamper- and weatherresistant epoxy potting, and backed by a lifetime warranty
- Delivers non-contact read ranges up to 6 inches (152 mm).
Technical Specifications
Warranty
Lifetime Warranty
Color
Black
Frequency
125kHz
Mount Type
- Single Gang Box Mount
- Surface Mount
IP Rating
IP67
Voltage
+5-16 VDC
Current
- 35mA typical
- 75mA peak
Max Read Range
8 inches (202 mm)
Wiegand
Yes
Operating Temperature
–40° F to 149° F (–40° C to +65° C)
Indicator
LED
Compliance
- FCC
- ICC
- CE
- C-Tick
American Wire Gauge
24AWG
Warranty
Lifetime Warranty
