Description

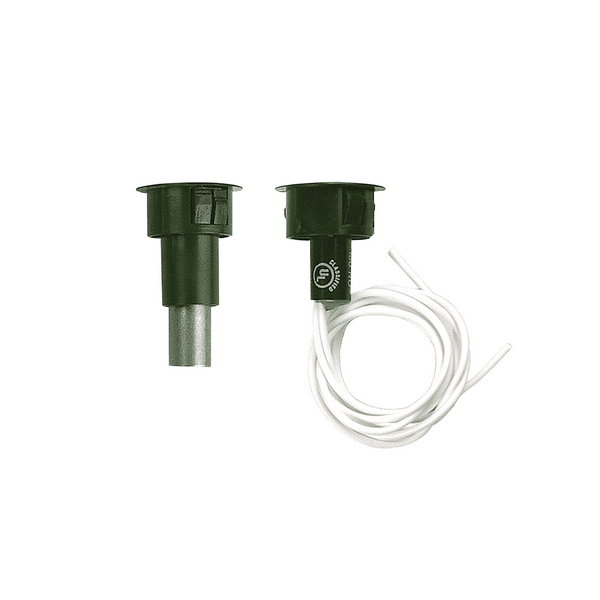

For Metal Doors, Grey
Features:
- The switch and magnet components are recessed into the door and frame via a ¾″ (19 mm) diameter hole, providing a clean, flush installation
- Two versions: DPS-W for wood doors and DPS-M for metal doors; the metal version includes a larger magnet to overcome steel shielding .
- Operates as a single-pole, single-throw (SPST), normally closed switch—ideal for monitoring door states .
- Works reliably with door-to-frame gaps ranging from ½″ to ¾″ (12–18 mm), accommodating varying alignments .
- Handles up to 0.4 A AC/DC and operates in temperatures from −40 °F to +150 °F (−40 °C to +65 °C) .
- Covered by Assa Abloy's MagnaCare lifetime, no-fault replacement warranty for long-term reliability .
Technical Specifications
Part Numbers
- DPS-W-BK/GY/WH
- DPS-M-BK/GY/WH
Function
Door open/closed detection
Switch Type
- SPST
- normally closed
Mounting
Concealed in door & frame
Hole Diameter
3/4? (19 mm)
Recess Depth
15/16? (24 mm)
Gap Sensing Range
1/2?–3/4? (12–18 mm)
Magnet Type
Cylindrical permanent magnet
Metal Variant Magnet Size
Larger magnet for steel doors
Switching Current
Max 0.4 A AC/DC
Operating Temperature
–40 °F to +150 °F (–40 °C to +65 °C)
Color Options
- Black
- Gray
- White
Material
Magnetic switch + magnet
Compliance
MagnaCare lifetime replacement warranty
Finishing
Color-matched plastic housing
Mounting Type
Flush-mounted
Installation
Drill 3/4? holes in door & frame
Warranty
Limited Lifetime Warranty
Compatibility
- Works with XDT exit timers
- DPA timers
Environmental Rating
Indoor/outdoor
Certifications
Not fire/burglar rated
Packaging
Single unit
SKU
- DPS-M-BK
- etc.
Warranty
Limited Lifetime Warranty
