Alarm Controls

SKU TS-14N TS-14N

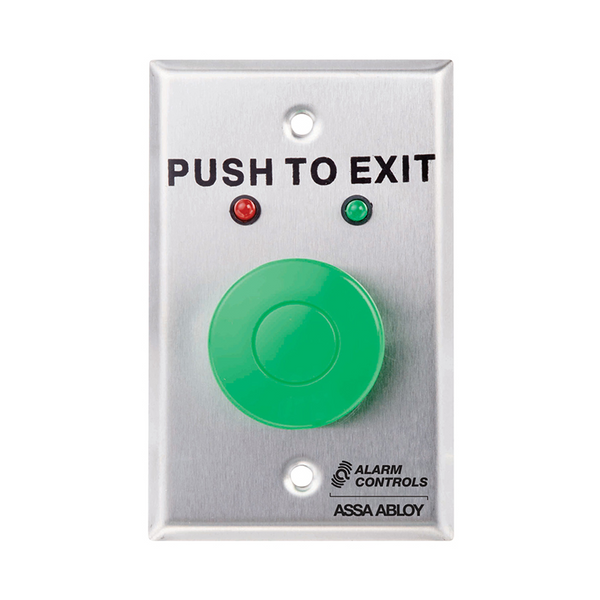

TS-x Mushroom Push Buttons TS-14N - TS-14N

Product Rating Product Rating Product Rating Product Rating Product Rating 0 Reviews
Write a Review
Price:
$426.00
  • Weight:
    0.20 LBS
  • Shipping:
    Calculated at Checkout

Key features

Button Size 1½in green mushroom
Wall Plate Narrow 1¾in 302 stainless steel
Material Stainless steel
Finish Satin stainless steel
Pneumatic Timer Adjustable 2–60 s
No External Power Yes
Limited Lifetime Warranty
Sale assistant
Contact our Sales Team for a tailored experience
Adding to cart… The item has been added
?Special Order Information
Sign In for Dealer Pricing Become a BLVS Customer

Description

Same as TS-14 Except Mounted on 1-3/4in Narrow Stainless Steel Wall Plate

Features:

  • The TS-1 single gang request to exit station with push button and LEDs provides a convenient way to monitor the lock station. LED status indicators provide an at-a-glance visual of system status.
  • The TS-14 request to exit station with pneumatic timer and push button, provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress. The door will relock when the relay time has expired.
  • The TS-21 provides a convenient way to add authorized access control with an extra-large 2-1/2" mushroom push button offers a large target for easy entry or egress.
  • The narrow stile TS-27 provides a convenient way to add authorized access control available with timer relay options.
  • The TS-36 is a momentary switch mpounted single gang wall plate with 1-1/2" push button which remains active as long as depressed.
  • The TS-50 is a switch mounted on double gang wall plate with 2-1/2" mushroom push button.

Technical Specifcations

Button Size
1½in green mushroom
Wall Plate
Narrow 1¾in 302 stainless steel
Material
Stainless steel
Finish
Satin stainless steel
Pneumatic Timer
Adjustable 2–60 s
No External Power
Yes
Contacts
1 NO + 1 NC
Contact Rating
10 A @ 35 VDC / 120 VAC
Timer Repeatability
±10%
Switch Depth
2½in behind plate
Leads
10in color-coded
UL Compliance
UL-294 listed
Warranty
Limited Lifetime Warranty
