Description

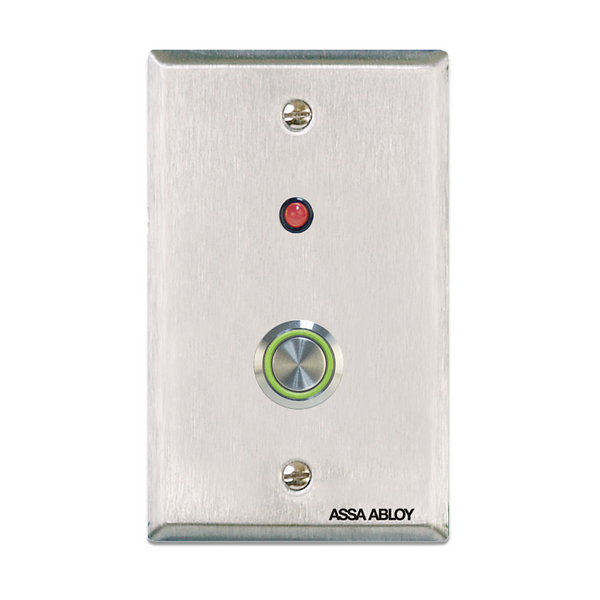

1/2" Round Button, Green Illuminated Halo, Alternate, DPDT, Single Gang, Green/Red LED
Features:
- Illuminated Green Halo-Style Button
- Bi-Color LED
- 4 Amp rated contacts
- Stainless Steel single gang plate: 4.5" x 2.75" [114mm x 70mm]
- Stainless Steel narrow stile plate: 4.5" x 1.75" [114mm x 44mm]
Technical Specifications
Function
- Alternate push-to-exit
- DPDT
Contact Rating
4 A contacts
Voltage
- 12 VDC: 20 mA
- 24 VDC: 40 mA
Dimensions
- Plate: 4.5?×2.75?
- narrow plate option 4.5?×1.75?
Button Size
1/2? round halo button
Material
Stainless steel plate
Finishing
Stainless steel finish
Compliance
- UL listed
- vandal-resistant
LED
Bi-color green halo-style LED
Tamper
Vandal- and tamper-resistant design
Mounting
- Single-gang
- narrow stile option
Plate Finish
Satin stainless
Fire Rated
(Not specified)
Warranty
Limited Lifetime Warranty
ADA Compliant
Yes – lens options
Plate Material
Stainless steel
Illumination
Green halo with bi-color LED
Gang Size
Single or narrow-gang
LED Current
- 20 mA @ 12 V
- 40 mA @ 24 V
Switch Type
Alternate DPDT
Depth
˜ 3? plate depth
Warranty
Limited Lifetime Warranty
