Alarm Controls

SKU TS-14R TS-14R

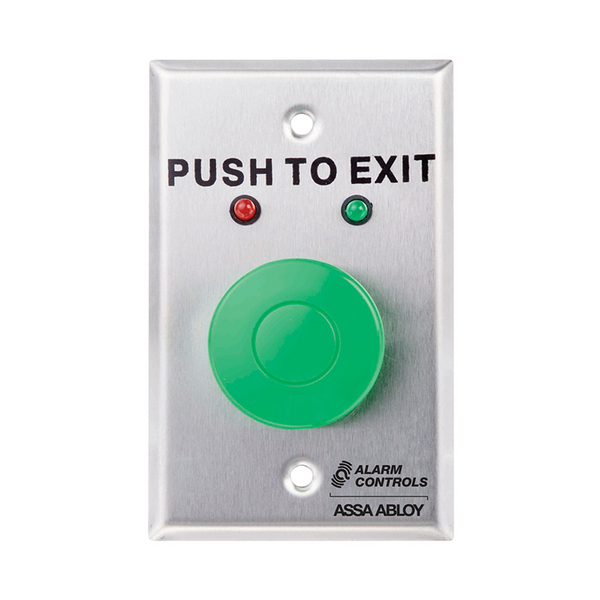

TS-x Mushroom Push Buttons TS-14R - TS-14R

Product Rating Product Rating Product Rating Product Rating Product Rating 0 Reviews
Write a Review
Price:
$426.00
  • Weight:
    0.20 LBS
  • Shipping:
    Calculated at Checkout

Key features

Button Diameter 1.5 in (38 mm)
Button Color Red
Timer Type Pneumatic time-delay
Contacts One NO + one NC
Contact Rating 10 A @ 35 VDC or 120 VAC
Material Stainless steel plate + internal switch
Limited Lifetime Warranty
Sale assistant
Contact our Sales Team for a tailored experience
Adding to cart… The item has been added
?Special Order Information
Sign In for Dealer Pricing Become a BLVS Customer

Description

One N/O and One N/C Contact, 1-1/2in Round Red Push Button, PUSH TO EXIT, Single Gang, Stainless Steel Wall Plate

Features:

  • The TS-1 single gang request to exit station with push button and LEDs provides a convenient way to monitor the lock station. LED status indicators provide an at-a-glance visual of system status.
  • The TS-14 request to exit station with pneumatic timer and push button, provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress. The door will relock when the relay time has expired.
  • The TS-21 provides a convenient way to add authorized access control with an extra-large 2-1/2" mushroom push button offers a large target for easy entry or egress.
  • The narrow stile TS-27 provides a convenient way to add authorized access control available with timer relay options.
  • The TS-36 is a momentary switch mpounted single gang wall plate with 1-1/2" push button which remains active as long as depressed.
  • The TS-50 is a switch mounted on double gang wall plate with 2-1/2" mushroom push button.

Technical Specifcations

Button Diameter
1.5 in (38 mm)
Button Color
Red
Timer Type
Pneumatic time-delay
Contacts
One NO + one NC
Contact Rating
10 A @ 35 VDC or 120 VAC
Time-Delay Range
  • (Not specified
  • pneumatic timer)
Material
Stainless steel plate + internal switch
Finish
Stainless steel (satin or 302)
Label
PUSH TO EXIT
Switch Type
Momentary mushroom
Temperature Range
–25 °C to +70 °C
Compliance
UL-294 listed
Warranty
Limited Lifetime Warranty
