Description

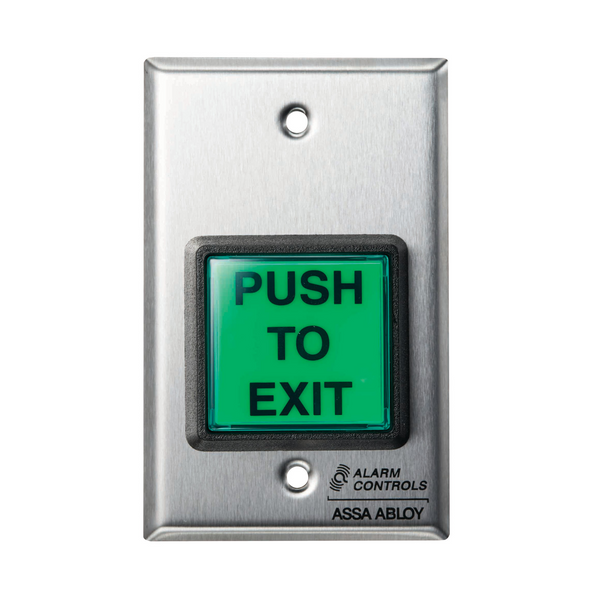

2in Square Green Illuminated Push Button, PUSH TO EXIT, 2 SPDT 1A Contacts, Single Gang, Stainless Steel Wall Plate, UL Listed
Features:
- Switch mounted on wall plate
- Options for wall plate size, LEDs, time delay
- 2" square or 5/8" x 7/8" rectangular push button
- LED button color options available: Red, Green, ADA
- Illuminated with hi-brightness LED
- Momentary SPDT or DPDT action switch
Technical Specifcations
Button Size
2 in square
Button Color
Green
Action
Momentary DPDT
Contacts
- Two SPDT
- 10 A @ 35 VDC
Input Voltage
12/24 VAC/DC
LED Lighting
- Hi-brightness
- operates on 12/24 VAC/DC
Switch Depth Behind Plate
2½in
Plate Mount
Single-gang
Plate Finish
430 stainless steel
Material
Stainless steel
Termination
10in colored leads
Labeling
PUSH TO EXIT
Warranty
Limited Lifetime Warranty
Warranty
Limited Lifetime Warranty
