Description

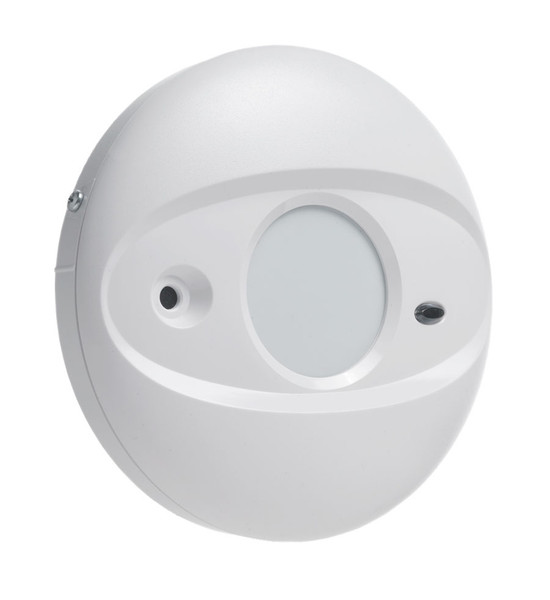

DSC AC-500 Acuity Ceiling Mount Glass Break Detector, Form 'C' Alarm Contact and Tamper Switch (Replaces AC-101)
Features:
- Advanced microprocessor-based glassbreak sensor
- High-level static and transient protection
- High RF immunity with SMD construction
- White noise rejection mechanism
- Installer test mode for glassbreak sensor (AFT-100 tester required)
- Alarm memory (latching LED) for glassbreak sensor
Technical Specifications
Color
White
Voltage
9 to 14.5 VDC
Current
24 mA to 12 VDC
Relay Type
Alarm Relay
Relay Output
1 Amp @ 24 VDC
Tamper Type
Switch
Switch Rating
0.1 Amp @ 24 VDC
Microphone Type
Omnidirectional Electret
Mount Type
Ceiling Mount
