Description

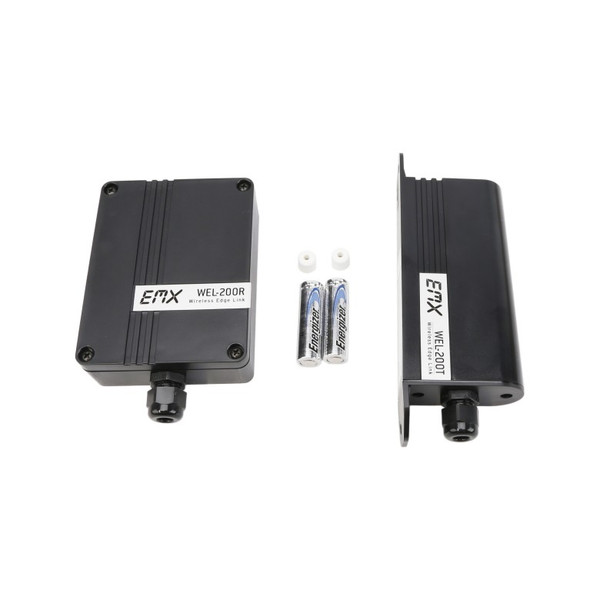

The WEL-200R Receiver is a part of the WEL-200 Wireless Edge Link System by EMX. The WEL-200 system provides a complete wireless solution for interfacing sensing edges with gate openers and garage door operators. Wireless edge link eliminates the wiring between the safety edge and operator control box ensuring compliance with 2018 UL325 monitoring standards. The WEL-200 operates up to 200 feet line of sight between transmitter and receiver. The receiver connects with up to four transmitters with separate relay and pulse outputs for open and close edge functionality. The WEL-200R Receiver is equipped with enhanced diagnostic features that makes it easy to install and maintain. Feedback is provided for all fault modes, including edge open and short conditions, low battery and failed transmitters. The WEL-200R receiver supports all common monitoring methods, including normally closed (NC), resistive termination (10K) and pulse output.
Features:
- Interface sensing edges with gate and door operators
- Eliminates the need to wire between safety edge and garage door operator
- Connect Up To 4 Safety Edge Transmitters
- NC, 10K, and Pulse Monitoring
- Up To 200 ft Operating Range
- Versatile compatibility ensures it works with various safety edges.
