Description

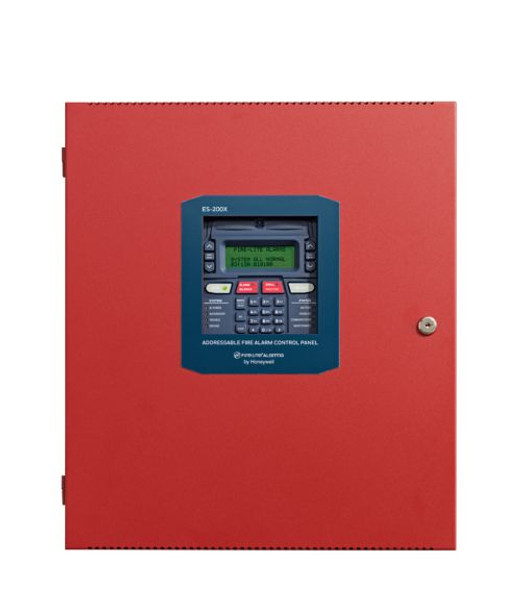

ES-200X fire alarm control panels (FACPs) come with a pre-installed communicator and support up to 198 addressable devices (99 detectors and 99 modules). With an extensive list of powerful features, these FACPs are just like other & Fire-Lite® & addressable products, yet fit into applications previously served only by conventional panels. The pre-installed IPOTS-COM is a dual technology (POTS and IP) communicator. The POTS transmits system status (alarms, troubles, AC loss, etc.) to a central station via the public switched telephone network. The IP communicator’s internet monitoring capability sends alarm signals over the internet saving the monthly cost of two dedicated business telephone lines. Although not required, the secondary telephone line may be retained providing backup communication over the public switched telephone line.
Features:
- Auto-programming (learn mode) reduces installation time (reports two devices set to the same address)
- Four built-in, independently programmable, built-in Style Z (Class A) or Style Y (Class B) NACs
- Selectable strobe synchronization for System Sensor®, Wheelock®, and Gentex® devices
- NAC end-of-line resistor matching
- Four programmable function keys for ease of maintenance
- Integral 80-character LCD with backlighting
Technical Specifcations
- 120V AC
- 230V AC
