Description

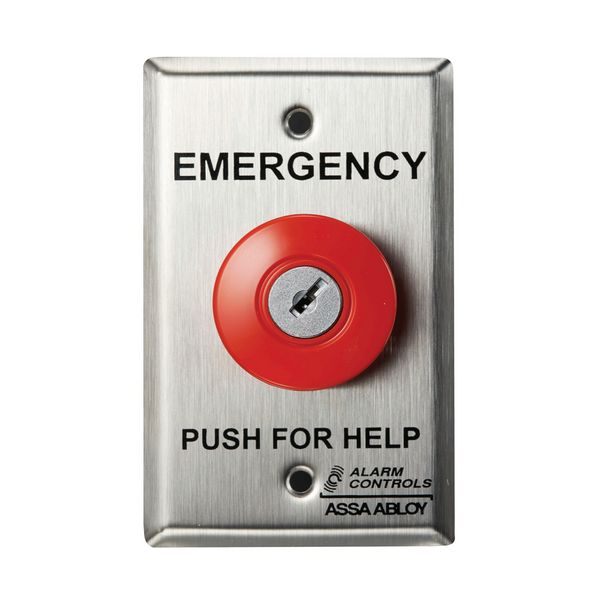

Red Latching Mushroom Button with Key Reset, 10A N/O and N/C Contacts
Features:
- Single gang stainless steel wall plate
- 1-1/2" red mushroom button
- Normally-open and/or normally-closed contact pairs
- Contacts rated 10A @ 35VDC or 120VAC
- Temperature range -25C to +70C
- Switch connection via screw terminals
Technical Specifications
Button Size
1.5in red mushroom
Latching Action
- Push once—door sounds
- stays latched until reset
Reset Method
Key reset switch
Contacts
N/O & N/C pairs configurable
Contact Rating
10 A @ 35 V DC or 120 VAC
Plate Material
Stainless steel wall plate
Plate Finish
Brushed stainless (IP40)
Material
- Stainless steel
- aluminum/plastic button
Compliance
IP40 weather-resistant standard
Button Material
Red plastic mushroom
Screened Text
EMERGENCY PUSH FOR HELP
Mounting
Single gang box
Warranty
Limited Lifetime Warranty
