Description

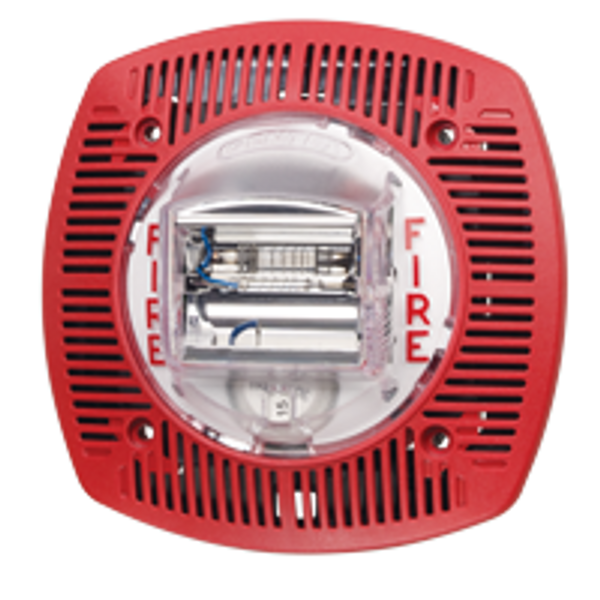

The Gentex SSPK24WLP Series are wall mount, selectable candela speaker/strobes designed to meet code requirements for audio, visual and voice communications. The SSPK24WLP Series are quality speaker products that offer both dependable evacuation signaling and visual alarms, or a combination of both. The high output tamperproof candela selections are 15, 30, 60, 75, 110. A fixed 15/75 candela unit is also available.
Features:
- Speaker/strobe nominal voltage 24 VDC
- 24 VDC field selectable candelas: 15, 30, 60, 75, 110
- 24 VDC fixed 15/75 unit available
- Unit dimension: 6.1” (15.494 cm) square x 3.89” (9.88 cm) deep
- Speaker voltage 25 or 70.7 VRMs standard, field selectable
- Field selectable power taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
Technical Specifications
Color
Red
Connectivity Technology
Wired
Sound Emission
87 dB
Application
- Evacuation
- Fire
- Fire Alarm
- Signaling
Durability
Tamperproof
Lens Color
Clear
Voltage
24VDC
Mount Type
- Box Mount
- Wall Mount
Compatibility
Gentex AVSM Control Module
Compliance
- Americans with Disabilities Act (ADA
- NFPA 72
- IBC/IFC/IRC
- Quality Management System is certified to: ISO 9001:2008
