Description

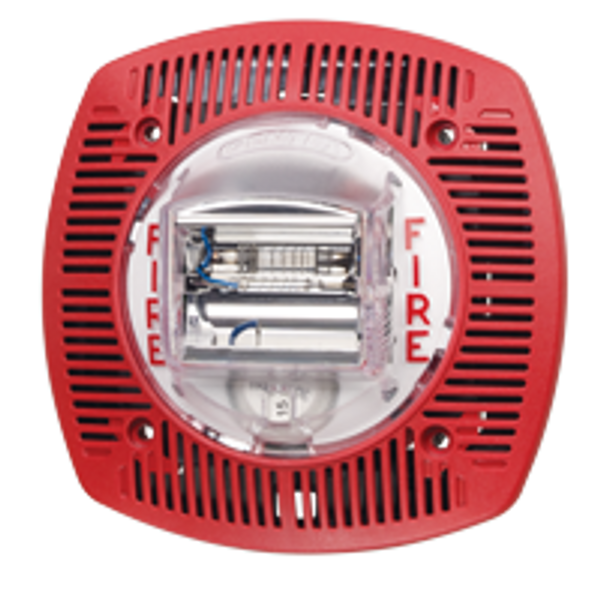

The Gentex SSPK24WLP Series are wall mount, selectable candela speaker/strobes designed to meet code requirements for audio, visual and voice communications. The SSPK24WLP Series are quality speaker products that offer both dependable evacuation signaling and visual alarms, or a combination of both. The high output tamperproof candela selections are 15, 30, 60, 75, 110. A fixed 15/75 candela unit is also available.
Features:
- Speaker/strobe nominal voltage 24 VDC
- 24 VDC field selectable candelas: 15, 30, 60, 75, 110
- 24 VDC fixed 15/75 unit available
- Speaker voltage 25 or 70.7 VRMs standard, field selectable
- Field selectable power taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
- High quality dBA output (intelligible)
Technical Specifications
Mount Type
Wall Mount
Color
White
Lens Color
Clear
Connectivity Technology
Wired
Voltage
24VDC
Frequency
400-4000Hz
American Wire Gauge
12-18AWG
Compliance
- Americans with Disabilities Act (ADA
- NFPA 72
- IBC/IFC/IRC
- Quality Management System is certified to: ISO 9001:2008
