Description

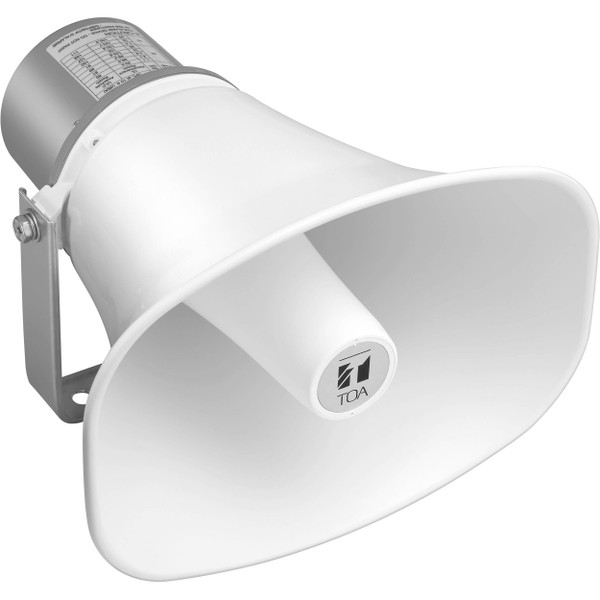

The SC-630TU is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability. The SC-630TU is certified to UL 1480 UUMW and ULC-S541 standards, and suitable for outdoor use.
Features:
- Paging horn speakers for voice paging and tone signaling distribution.
- Certified to Fire Alarm Signaling Speaker certification
- UL 1480 UUMW and ULC-S541 listed.
- Double re-entrant horn with compression driver
- Usable as a microphone for intercom talk-back applications.
- Input impedance selector (25V and 70V) with rotary switch
- Controlled dispersion
- Weather-resistant to withstand demanding environmental conditions.
- IEC IP65 standards compliant for dust and moisture resistance.
- Non-flammable transformer case and speaker cable
- Extra wide temperature range: -40°F to 151°F
- Diaphragms employing special heat-resistant polyimide film to prevent the diaphragm from absorbing moisture and changing shap
Technical Specifications
Consumption
30W
Impedance
- 70 V line: 170 Ω (30 W)
- 330 Ω (15 W)
- 650 Ω (7.5 W)
- 25 V line: 21 Ω (30 W)
- 42 Ω (15 W)
- 170 Ω (3.9 W)
- 330 Ω (2.1 W)
- 650 Ω (1.1 W)
Sound Pressure
113dB
Frequency
250 Hz - 10 kHz
Polarity
- Hot: Black and Red cables
- Com: White and Green cables
IP Rating
IP65
Operating Temperature
-40 °C to +66 °C (-40 °F to 151 °F)
Compliance
- UL 1480 UUMW
- ULC-S541
Cable Type
- 4-core FPL listed cable 0.6 m (1.97 ft)<br/>
- (4.8 mm (0.19") in diameter
- 600 mm (1.97 ft) in length)
Material
- Aluminum
- ABS Resin
- Stainless Steel
Color
White
Dimensions
285 (W) x 227 (H) x 277 (D) mm (11.22 x 8.94" x 10.91")
Weight
2 kg (4.41 lb)
Warranty
5 Years Warranty
