Description

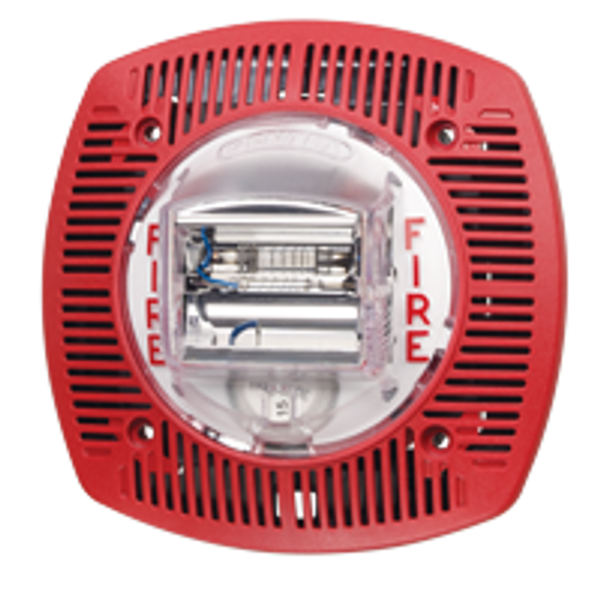

The Gentex SSPK24WLP Series is a wall mount, selectable candela speaker/ strobe designed to meet code requirements for audio, visual and voice communications. The SSPK24WLP Series are quality speaker products offering both dependable evacuation signaling and visual alarms, or a combination of both.
Features:
- Speaker/strobe nominal voltage 24 VDC
- 24 VDC field selectable candelas: 15, 30, 60, 75, 110
- 24 VDC fixed 15/75 unit available
- Speaker voltage 25 or 70.7 VRMs standard, field selectable
- Field selectable power taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
- High quality dBA output (intelligible)
Technical Specifications
Lens Color
Clear
Color
Red
Connectivity Technology
Wired
Sound Emission
87dB
Mount Type
Wall Mount
Compliance
- ANSI/UL 1480
- ANSI/UL 1971 and ANSI/UL 1638 Listed
- 24CSFM: 7320-0569:140
- MEA: 580-06-E Vol. 3
