Description

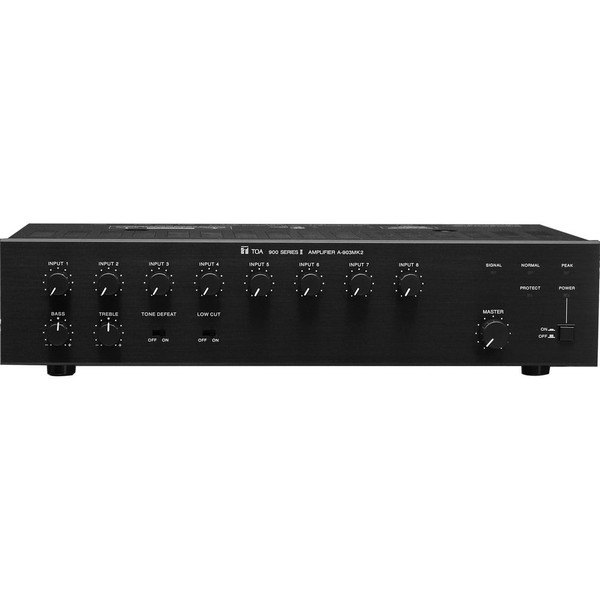

The A-903MK2 Mixer Power Amplifier controls and mixes up to eight independent input signals. The Mixer Power Amplifier delivers up to 30 watts of output power. Optional plug-in modules are available for use with mixer power amplifier to provide versatility for a wide range of operating applications.
Technical Specifications
Voltage
120 VAC
Consumption
60W
Frequency
- 20 to 20
- 000 Hz
- 20 to 15
- 000 Hz
Distortion
- 0.02% at 1 kHz
- rated output
Channels
8CH
Impedance
Input Port #1 to #8 : 100 mV/10 kΩ Bridging Input/Output : 100 mV/3.3 kΩ
S/N Ratio
- 90dB
- 77dB
- 105dB
Tone Control
- Bass : ±10 dB at 100 Hz
- Treble : ±10 dB at 10 kHz
Indicator
LED
Color
Black
Operating Temperature
-10 °C to +60°C (12 °F to 140 °F)
Warranty
5 Years Warranty
