TOA Electronics

SKU A-9120DHM2 CU A-9120DHM2 CU

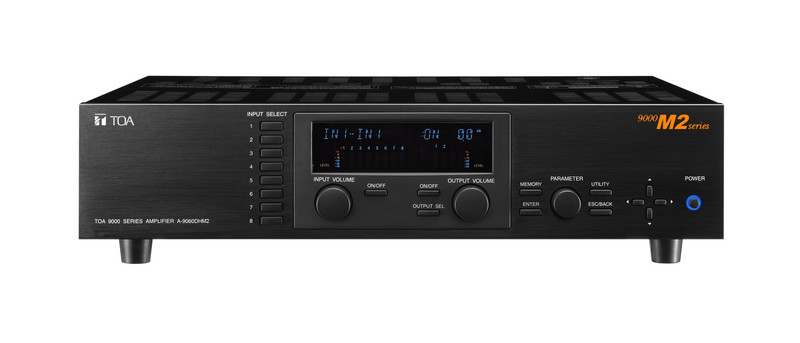

A-9120DHM2 Modular Digital Mixer/Amplifier, 2x120W@70V - A-9120DHM2 CU

Product Rating Product Rating Product Rating Product Rating Product Rating 0 Reviews
Write a Review
Price:
$1,825.00
  • Weight:
    24.25 LBS
  • Shipping:
    Calculated at Checkout

Key features

  • Color
5 Years Warranty
Sale assistant
Contact our Sales Team for a tailored experience
Sign In for Dealer Pricing Become a BLVS Customer

Description

The A-9120DHM2 Amplifier is designed to be used in conjunction with optional modules and can be configured for up to 8 inputs and 8 outputs. 9000 series modules as well as existing 900 series input modules can be used. The most appropriate modules can be selected depending on applications. Since it comes with two 120 W power amplifiers, it can individually perform multi-origin broadcasts. It is equipped with signal processing and control functions necessary for sound reinforcement, permitting all parameters to be set at the mixer. Settings data can be stored inside the unit and called up using the keys on the front panel.

Features:

  • Flexible modular design - up to 8 mic/line inputs and 8 total outputs
  • Intuitive GUI software
  • RS-232 control for 3rd party control systems
  • EQ presets for 30 TOA loudspeakers included
  • Accepts TOA ZM series remote controls (RC-001T may be required)
  • 32 scene memories and 32 paging memories
  • Up to 12 filters plus compressor available for each input and output channel

Technical Specifications

Voltage
120 VAC
Consumption
250W
Channels
2CH
Frequency
20 Hz-20 kHz
Distortion
  • 0.0008 % (22 kHz LPF
  • 1 kHz
  • rated power)
  • 0.01 % (A-Weighted
  • 1 kHz
  • rated power)
S/N Ratio
110dB
Tone Control
Bass: ±12 dB (at 100 Hz) Treble: ±12 dB (at 10 kHz)
Operating Temperature
-10 °C to +40 °C (14 °F to 104 °F)
Operating Humidity
35 % to 80 %RH (no condensation)
Material
  • Aluminum
  • hair-line
  • Case: Surface-treated steel plate
Color
Black
Warranty
5 Years Warranty

Warranty

5 Years Warranty
