Description

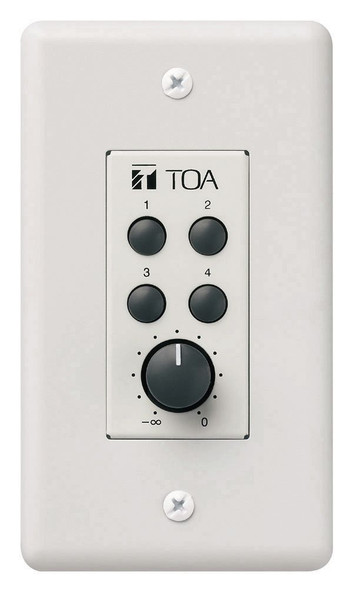

The ZM-9002 is a remote control switch/volume panel used with the 9000 series amplifiers. It adds 4 amplifier control inputs and 1 remote volume control, and can be mounted in a standard 1-gang electrical box in the wall.
Features:
- 4 buttons to activate preset selection or volume up/down
- Volume control knob
- Wiring: single conductor shielded cable
- Max. loop resistance: 50 O per line
- Mounting in one gang electical box
- Maximum 2 remote panels per chassis
Technical Specifications
Line Resistance
50Ohms
Operating Temperature
-10 °C to +40 °C (14 °F to 104 °F)
Material
Surface Treated Steel Plate
Color
White
Dimensions
72 (W) x 127 (H) x 56 (D) mm
Weight
170g
Warranty
5 Years Warranty
